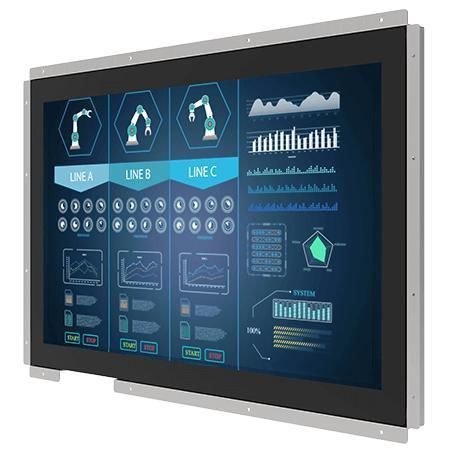

Projected capacitive touchscreen monitor W32L100-POA3
PCAP capacitive touch screenmultitouch screenindustrial

Projected capacitive touchscreen monitor - W32L100-POA3 - Winmate, Inc. - PCAP capacitive touch screen / multitouch screen / industrial
Projected capacitive touchscreen monitor - W32L100-POA3 - Winmate, Inc. - PCAP capacitive touch screen / multitouch screen / industrial
Projected capacitive touchscreen monitor - W32L100-POA3 - Winmate, Inc. - PCAP capacitive touch screen / multitouch screen / industrial - image - 2
Projected capacitive touchscreen monitor - W32L100-POA3 - Winmate, Inc. - PCAP capacitive touch screen / multitouch screen / industrial - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
projected capacitive touchscreen, PCAP capacitive touch screen, multitouch screen
Applications
industrial, for digital signage, for HMI interface
Display size
32"
Resolution
1920 x 1080
Mounting
VESA mounting, wall-mount, open-frame, flush-mount
Other characteristics
HDMI, USB, VGA, DVI port, fanless, wide viewing angle
Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Overview
  • 32in industrial open-frame projected capacitive (PCAP) multi-touch monitor designed for kiosks, HMI, OEM integration and commercial/industrial installations.
  • Low power consumption and fanless design for efficient heat dissipation and reliable long-term operation in production environments.
  • Flexible mounting: rear, flush and VESA mount options to suit varied installation requirements.
  • Wide customization options including panel brightness, glass surface treatment, I/O ports, power plug style and customer logo.


Key Features
  • 32in, 1920 x 1080 (Full HD)
  • VGA input; HDMI and DVI optional
  • Open-frame design
  • VESA mounting compatible
  • PCAP (Projected Capacitive) multi-touch


Certifications
  • CE
  • FCC


Accessories
  • 1 x VGA cable
  • 1 x HDMI cable
  • 100~240V AC to DC adapter
  • Power cord
  • Manual
  • VESA screws (varies by product)
  • Optional accessory: remote controller (varies by product)


Technical Specifications
  • Size: 32.0 inches
  • Touch / Glass: Projected Capacitive multi-touch
  • Resolution: 1920 x 1080
  • Panel Brightness: 400 nits
  • Contrast Ratio: 4000:1
  • View Angles: 89/89/89/89
  • Display Color: 16.7M colors
  • Active Area: 698.4 x 392.85 mm
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Certification: CE, FCC
  • USB Port: 1 x USB for touch
  • Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: Audio line in (3.5mm) (optional); 2 x speaker (optional)
  • Dimension: 814 x 514 x 68 mm
  • Mounting: VESA mount
  • Enclosure: Metal
  • Cooling System: Fanless design
  • Accessory (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
  • Optional Accessory: Remote controller (varies by product)
  • Power Rating: 24V DC in
  • Control / Buttons: 5 keys ( -, +, Power, Esc, Enter )
