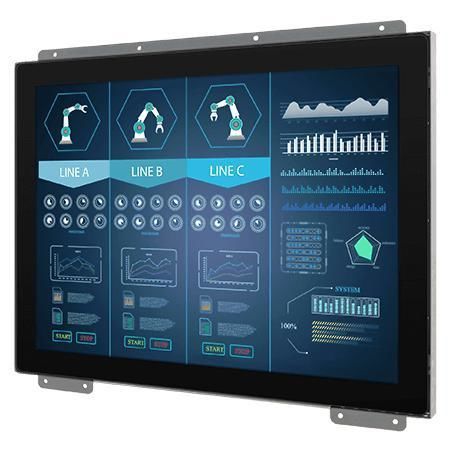

Projected capacitive touchscreen monitor R15L100-POC3

multitouch screentouchindustrial

Overview
The R15L100-POC3 is a 15-inch open-frame projected-capacitive multi-touch display designed for kiosk, embedded, commercial and industrial applications. It is engineered for low power consumption, effective heat dissipation and long-term operation in production environments. Display modules are assembled in a clean room to facilitate further integration.

Key Features

• 15-inch diagonal, 1024 x 768 resolution
• VGA input; HDMI and DVI optional
• Open-frame design for integration
• Rear and VESA mounting options

Certifications

• CE
• FCC

Product Details

• Low power consumption and fanless design for reliable continuous operation in industrial environments
• Multiple mounting solutions (rear mount and VESA) for flexible installation in kiosks and embedded systems
• Rugged metal enclosure with configurable options: anti-glare glass, LCD brightness variations, custom logos and housing materials
• Available ports and customization: USB for touch, VGA standard, HDMI/DVI optional, selectable power input (12V DC, 24V DC)
• Accessories: example kit includes VGA/HDMI cables, 100~240V AC to DC adapter, power cord, manual and VESA screws (varies by product)

Technical specifications

• Model: R15L100-POC3
• Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen; Anti-glare Coating (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 358 x 276 x 42 mm
• Cut out: 360 x 278 mm
• Weight: 3.4 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC in; 24V DC in (optional)
• Button: 5 Keys: -, +, Power, Esc, Enter
