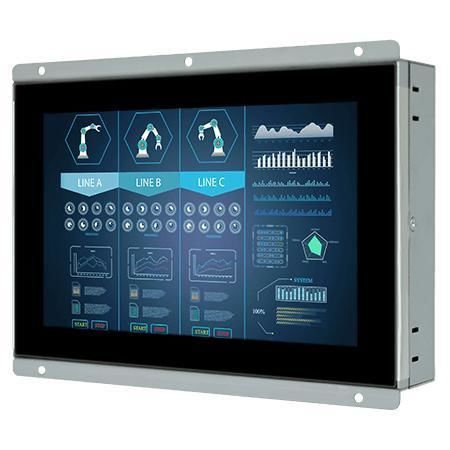

Multitouch screen display W07L100-POT1

touch screenprojected capacitive touchscreenPCAP touchscreen

Product overview
This 7.0 inch open-frame multi-touch display from Winmate, model W07L100-POT1, is engineered for embedded, commercial and industrial applications requiring compact interactive visualization. The unit combines projected-capacitive multi-touch technology with low power consumption, fanless cooling and flexible mounting options for use in production lines, kiosks and industrial HMI.

Key features

• 7.0 inches, 1024 x 600 resolution
• Projected Capacitive (PCAP) multi-touch
• VGA and HDMI video inputs (HDMI optional depending on SKU)
• Open-frame design with VESA and panel-mount options
• Fanless metal enclosure for reliable industrial operation

Certifications

• CE
• FCC

Product details
The display is designed for low power consumption and efficient heat dissipation, ensuring durable operation in continuous-use environments. Multiple mounting solutions, including rear and VESA mounting, allow integration into control panels, kiosks and embedded systems. The metal enclosure and fanless architecture make the unit suitable for industrial settings where dust and vibration are present. Available options include different housing materials, screen sizes and feature packages to match application requirements.

Customization and ports
Winmate offers customization options such as product size, customer logo, LCD panel brightness, glass cover surface treatment and display port configurations. I/O includes 1 x USB for touch, 1 x VGA, and optional HDMI or DVI. Audio line-in and speakers are available as options. Power connector style is adapted to regional requirements.

Technical specifications

• Model: W07L100-POT1
• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 600
• Panel Brightness: 320.0 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70
• Display Color: 16.7M Colors
• Active Area: 153.6 x 90 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 190 x 139.6 x 34 mm
• Weight: 0.6 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC in
• Buttons: 5 Keys: -, +, Power, Esc, Enter
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
