LCD monitor R17L100-POM1

projected capacitive touchscreenPCAP touchscreenmulti-touch screen

Overview

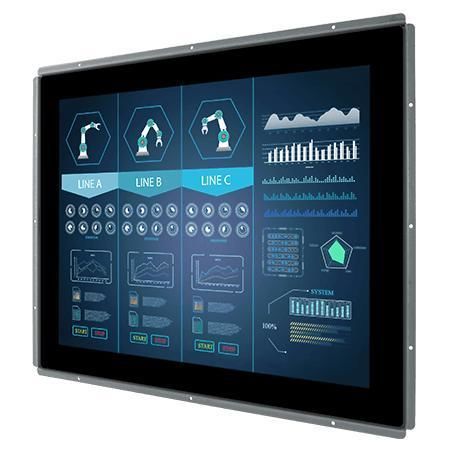

This 17-inch PCAP open-frame multi-touch display R17L100-POM1 is engineered for kiosk, embedded, commercial and industrial applications. It provides low power consumption, effective heat dissipation, multiple mounting options and industrial-grade configurability for factory and commercial environments.

Key Features

• 17-inch, 1280 x 1024
• VGA and HDMI input
• Open-frame design
• VESA mount / rear & panel mounting options
• PCAP (Projected Capacitive) multi-touch

Certifications

• CE
• FCC

Product Details
Low power consumption and optimized thermal design enable continuous operation in production and commercial environments.

Multiple mounting options such as rear, panel and VESA mounting support integration into kiosks, control panels and embedded systems.

Rugged metal enclosure and industrial-grade display modules ensure long-term reliability and consistent image performance in factory conditions. Configurable options include panel brightness, glass surface treatment, housing material and custom logos to match application requirements.

Specifications

• Display - Size: 17.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display - Resolution: 1280 x 1024
• Display - Panel Brightness: 350 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85, 85, 80, 80
• Display - Display Color: 16.2M Colors
• Display - Active Area: 337.920 x 270.336 mm
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports - USB Port: 1 x USB for Touch Screen
• IO Ports - Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 407 x 338 x 50 mm
• Mechanical - Weight: 4.4 kg
• Mechanical - Mounting: VESA Mount / Panel Mount
• Mechanical - Enclosure: Metal
• Mechanical - Cooling System: Fanless Design
• Accessory - Standard: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Accessory - Optional: Remote Controller (Optional, Varies by product)
• Power - Power Rating: 12V DC input (24V DC optional)
• Control - Button: 5 Keys: -, +, Power, Esc, Enter
