LCD monitor W07L100-GST1

projected capacitive touchscreenPCAP capacitive touch screenmultitouch screen

Overview

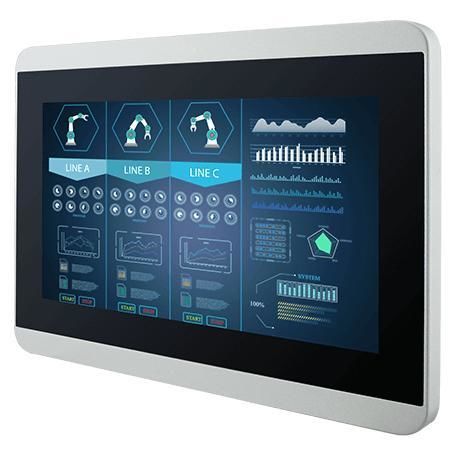

The W07L100-GST1 is a 7-inch industrial touch display engineered for demanding environments such as food & beverage, chemical processing and heavy industry. It features an edge-to-edge aluminum front, projected capacitive multi-touch (PCAP), IP65 dust and water protection with M12 connectors, fanless cooling and MIL-STD-810F/G compliance for shock and vibration.

Key features

• 7" 1024 x 600 resolution
• Projected Capacitive Multi-Touch (PCAP)
• Full IP65 dust and water protection
• VGA input and USB for touch
• M12 type waterproof connectors
• Compliant with MIL-STD-810F/G for shock and vibration

Certifications

• IP65 (dustproof and waterproof)
• CE
• FCC
• Compliant with MIL-STD-810F/G for vibration/shock

I/O and Connectivity

• 1 x VGA video input
• 1 x USB for touch screen
• 1 x Speaker (audio)
• M12 type connectors and I/O protective caps for waterproof protection

Accessories

• Quick Start Guide (Hardcopy)
• AC Adapter (for 7" display only)
• M12 Power Cable (not supplied with 7" display)
• VGA Cable
• USB for Touch Cable
• I/O Protective Cap x 3

Technical specifications

• Model: W07L100-GST1
• Display size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen; Protection Glass (Optional)
• Resolution: 1024 x 600
• Panel brightness: 320 nits
• Contrast ratio: 1000:1
• View angles: 75, 75, 75, 70
• Display color: 16.7M Colors
• Active area: 153.6 x 90 mm
• Operating humidity: 10% to 95% RH
• Operating temperature: -15 °C to 55 °C
• Storage temperature: -30 °C to 60 °C
• Shock: 40g for 11 ms
• Vibration: 1.48 / 1.90 / 2.24 g rms for XYZ, 5–500 Hz
• IP rating: IP65 (dustproof and waterproof)
• Certifications: CE, FCC; compliant with MIL-STD-810F/G for vibration/shock
• USB port: 1 x USB for touch screen
• Video: 1 x VGA
• Audio: 1 x Speaker
• Dimensions (W x H x D): 189.4 x 145.4 x 39.8 mm
• Weight: 1.13 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Power rating: 12V DC (M12 type)
• Controls: 5 keys: -, +, Power, Esc, Enter
