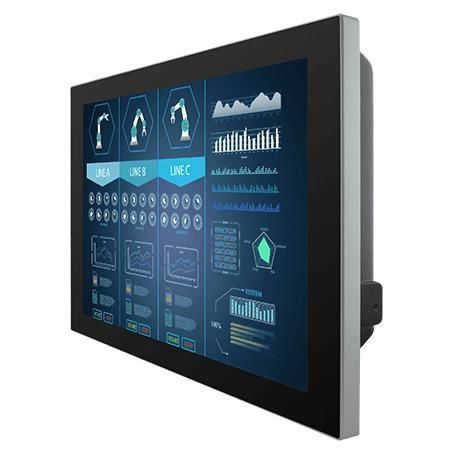

LCD monitor R15L600-GSC3(HB)

projected capacitive touchscreenPCAP touchscreenmultitouch screen

Product overview
Winmate R15L600-GSC3(HB) is a 15.0-inch industrial projected-capacitive (PCAP) touch display engineered for harsh environments. The flat aluminum, edge-to-edge front supports easy cleaning and liquid resistance, while M12 waterproof connectors and IP65 front protection make it suitable for wet or dusty industrial sites.

Key features

• 15.0" display, 1024 x 768 resolution
• Projected capacitive multi-touch (PCAP)
• IP65 front — dustproof and waterproof
• M12 waterproof connectors
• Fanless cooling; aluminum enclosure; optical bonding

Overview / Benefits

• Easy-to-clean flat surface: Edge-to-edge aluminum front simplifies sanitation and resists liquid droplets.
• Industrial protection: IP65 front panel and M12 connectors for reliable operation in wet or dusty areas.
• Fanless design: Reduces dust ingress and increases service life in heavy-duty environments.
• Comprehensive I/O: USB for touch, VGA video and audio with waterproof protective caps for connectors.
• Shock & vibration resistance: Aluminum die-cast enclosure and optical bonding; compliant with MIL-STD-810F/G.

Certifications

• IP65
• CE
• FCC

Display

• Touch / Glass: Projected Capacitive Multi Touch; Protection glass optional; Anti-glare coating optional
• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 300 nits (1000 nits optional)
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M colors
• Active Area: 304.1 x 228.1 mm

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: -15 to 55 °C
• Storage Temperature: -30 to 60 °C
• Shock: 40 g for 11 ms
• Vibration: 1.48 / 1.90 / 2.24 g rms for XYZ, 5–500 Hz
• IP Rating: IP65 (front)

Certification details

• CE, FCC
• Compliant with MIL-STD-810F/G for vibration and shock

IO Ports

• USB: 1 × USB (touch)
• Video: 1 × VGA
• Audio: 1 × speaker

Mechanical

• Dimensions: 363.4 × 277.9 × 45.2 mm
• Mounting: VESA mount / panel mount
• Enclosure: Aluminum (die-cast)
• Cooling: Fanless design

Accessory

• Quick Start Guide (hardcopy)
• AC adapter (for 7" display only)
• M12 power cable (not supplied with 7" display)
• VGA cable
• USB for touch cable
• I/O protective cap × 3

Power

• Power rating: 9–36 V DC (M12 type)

Control

• Buttons: 5 keys: -, +, Power, Esc, Enter

Technical specifications

• Model: R15L600-GSC3(HB)
• Brand: Winmate
• Display size: 15.0 inches
• Resolution: 1024 × 768
• Touch: Projected capacitive multi-touch
• Protection: IP65 front
• Connectors: M12 waterproof connectors
• Brightness: 300 nits standard; 1000 nits optional
• Contrast ratio: 2000:1
• Active area: 304.1 × 228.1 mm
• Operating temp: -15 to 55 °C
• Storage temp: -30 to 60 °C
• Shock: 40 g for 11 ms
• Vibration: 1.48 / 1.90 / 2.24 g rms XYZ, 5–500 Hz
• Power: 9–36 V DC (M12)
• Dimensions: 363.4 × 277.9 × 45.2 mm
• Mounting: VESA / panel mount
• Enclosure: Aluminum
• Cooling: Fanless
• Certifications: CE, FCC; MIL-STD-810F/G compliance
