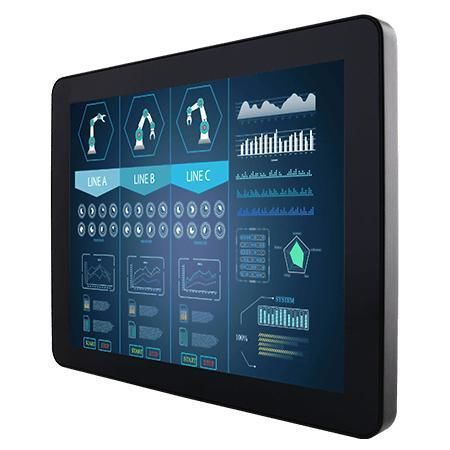

Projected capacitive touchscreen monitor R10L100-GST2

PCAP capacitive touch screenmultitouch screenindustrial

Overview
The Winmate R10L100-GST2 is a 10.4-inch industrial PCAP touch display designed for harsh environments. It features an edge-to-edge aluminum front, full IP65 protection, M12 waterproof connectors and a fanless architecture for reliable operation in dusty or wet conditions.

Key features

• 10.4" 1024 x 768 resolution
• Projected Capacitive Multi-Touch (PCAP)
• Front IP65 dustproof and waterproof rating
• M12 waterproof connectors (power / I/O)
• Edge-to-edge aluminum design with optical bonding
• Fanless cooling
• Compliant with MIL-STD-810F/G for shock and vibration

Industrial benefits

• Easy-to-clean flat surface reduces maintenance time and supports hygiene-sensitive environments
• Sealed design and M12 connectors minimize ingress and enhance reliability in wet or dusty sites
• Fanless construction prevents internal dust circulation and extends service life
• Wide operating temperature and humidity range for flexible deployment
• Multiple mounting options (VESA / panel) simplify integration into machines and control cabinets

Certifications

• CE
• FCC
• Compliant with MIL-STD-810F/G for vibration and shock

Technical specifications

• Display — Size: 10.4 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1024 x 768
• Display — Panel Brightness: 350 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 88, 88, 88, 88
• Display — Display Color: 16.2M Colors
• Display — Active Area: 210.4 x 157.8 mm
• Environment — Operating Humidity: 10% to 95% RH
• Environment — Operating Temperature: -15 °C to 55 °C
• Environment — Storage Temperature: -30 °C to 60 °C
• Environment — Shock: 40 g for 11 ms
• Environment — Vibration: 1.48 / 1.90 / 2.24 g rms for XYZ, 5-500 Hz
• Environment — IP rating: IP65 (dustproof and waterproof)
• Certification — Standards: CE, FCC; compliant with MIL-STD-810F/G for vibration/shock
• IO Ports — USB Port: 1 x USB for touch screen
• IO Ports — Video: 1 x VGA
• IO Ports — Audio: 2 x Speaker
• Mechanical — Dimension: 252.41 x 197.8 x 43 mm
• Mechanical — Mounting: VESA mount / panel mount
• Mechanical — Enclosure: Metal (aluminum die-cast)
• Mechanical — Cooling System: Fanless design
• Accessory — Quick Start Guide (Hardcopy); AC adapter (for 7" display only); M12 power cable (not supplied with 7" display); VGA cable; USB for touch cable; I/O protective cap x 3
• Power — Power Rating: 9-36 V DC (M12 type)
• Control — Buttons: 5 keys (-, +, Power, Esc, Enter)
