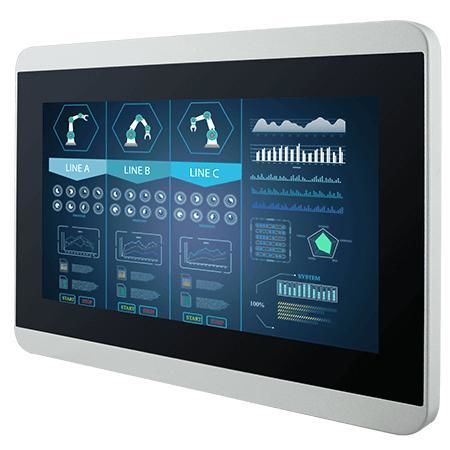

Projected capacitive touchscreen monitor W07L100-GSO1HB

PCAP capacitive touch screenmultitouch screenindustrial

Overview
The W07L100-GSO1HB is a 7-inch industrial high-brightness touch display designed for food processing, beverage and chemical environments. It features a flat, easy-to-clean aluminum bezel, edge-to-edge glass, fanless cooling and rugged die-cast housing with optical bonding for enhanced shock and vibration resistance.

Key Features

• 7.0" 1024 x 600 resolution
• Projected Capacitive Multi-Touch (PCAP)
• 1000 nits panel brightness
• Full IP65 front protection; M12 waterproof connectors
• Fanless design and metal housing

Certifications

• CE
• FCC
• Compliant with MIL-STD-810F/G for vibration and shock
• IP65 dustproof and waterproof

Display

• Touch / Glass: Projected Capacitive Multi-Touch; Protection glass optional
• Size: 7.0 inches
• Resolution: 1024 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 16.7M
• Active Area: 152.2144 x 85.92 mm

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: -15°C to 55°C
• Storage Temperature: -30°C to 60°C
• Shock: 40g for 11 ms
• Vibration: 1.48/1.90/2.24 g rms for XYZ, 5-500 Hz
• IP Rating: IP65 (front)

IO Ports

• USB: 1 x USB for touch
• Video: 1 x VGA
• Audio: 1 x Speaker

Mechanical

• Dimensions: 189.4 x 145.4 x 39.8 mm
• Mounting: VESA mount; panel mount optional
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design

Power

• Power Rating: 12V DC via M12 connector

Control

• Buttons: 5 keys — -, +, Power, Esc, Enter

Accessories

• Quick Start Guide (hardcopy)
• AC adapter (for 7" display only)
• M12 power cable (not supplied with 7" display)
• VGA cable
• USB for touch cable
• I/O protective caps x 3

Technical Specifications

• Model: W07L100-GSO1HB
• Display size: 7.0 inches
• Resolution: 1024 x 600
• Touch: Projected Capacitive Multi-Touch (PCAP)
• Brightness: 1000 nits
• Contrast ratio: 800:1
• Viewing angles: 85/85/85/85
• Colors: 16.7M
• Active area: 152.2144 x 85.92 mm
• Protection: IP65 (front), dustproof and waterproof
• Rugged: MIL-STD-810F/G compliant
• Operating temperature: -15°C to 55°C
• Storage temperature: -30°C to 60°C
• Operating humidity: 10% to 95% RH
• Shock: 40g for 11 ms
• Vibration: 1.48/1.90/2.24 g rms for XYZ, 5-500 Hz
• I/O: 1 x USB (touch), 1 x VGA (video), 1 x speaker
• Power: 12V DC via M12 connector
• Dimensions: 189.4 x 145.4 x 39.8 mm
• Mounting options: VESA mount, panel mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
