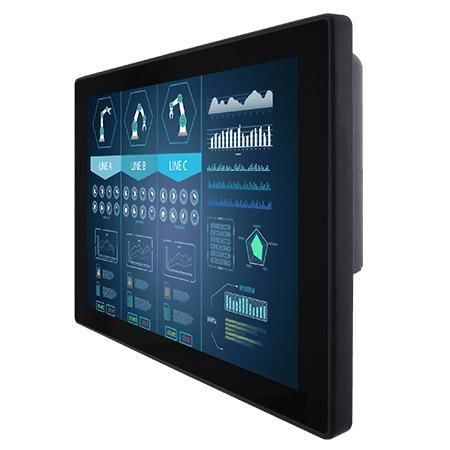

Projected capacitive touchscreen monitor R12L100-GSM2(HB)

multitouch screenindustrial12.1"

Key Features

• 12.1 inches 1024 x 768 Resolution
• Projected Capacitive Multi-Touch (PCAP)
• Full IP65 Water and Dust Proof
• M12 Waterproof Connectors
• Fully rugged elegant, edge-to-edge design

Certifications

• CE
• FCC
• IP65
• Compliant with MIL-STD-810F/G for vibration and shock

Overview
Easy-to-Clean Flat Surface
Winmate's flat aluminum display offers an elegant edge-to-edge design that is easy to clean and resistant to water and liquid droplets.

Dust and Water Protection
The display complies with IP65 standards; M12 connectors are waterproof for varied industrial environments.

Fanless Cooling System
Fanless design eliminates dust circulation to improve product longevity in dusty heavy-duty applications.

Comprehensive I/O Ports
Rugged design combined with a range of I/O ports; waterproof connectors include screw-on caps for added protection.

Anti-Shock and Vibration
G-WIN GS series meets MIL-STD-810G for vibration and shock; aluminum die-casting, optical bonding with anti-moisture treatment and resistive coating for rugged protection.

Caractéristiques / Spécifications techniques

• Touch / Glass: Projected Capacitive Multi Touch Screen; Protection Glass (Optional)
• Size: 12.1 inches
• Resolution: 1024 x 768
• Panel Brightness: 500 nits (1000 nits Optional)
• Contrast Ratio: 1000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.2M Colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 10% to 95% RH
• Operating Temperature: -15 to 55 °C
• Storage Temperature: -30 to 60 °C
• Shock: 40g for 11 ms
• Vibration: 1.48 / 1.90 / 2.24 g rms for XYZ, 5-500 Hz
• IP rating: IP65 (Dustproof and Waterproof)
• Certification: CE, FCC; Compliant with MIL-STD-810F/G for vibration/shock
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA
• Audio: 1 x Speaker
• Dimension: 296.2 x 226.7 x 45.5 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Aluminum
• Cooling System: Fanless Design
• Accessory: Quick Start Guide (Hardcopy); AC Adapter (for 7" display only); M12 Power Cable (not supplied with 7" display); VGA Cable; USB for Touch Cable; I/O Protective Cap x 3
• Power Rating: 9-36V DC (M12 type)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
