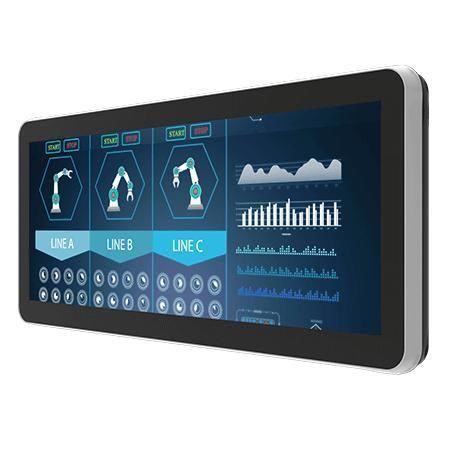

Projected capacitive touchscreen monitor W12L100-GSB1

PCAP touchscreenmultitouch screenindustrial

Overview
Winmate W12L100-GSB1 is a 12.3-inch industrial projected capacitive (PCAP) touch display from the G-WIN GS series. It integrates an extended-brightness 1920 x 720 panel, front IP65 protection, M12 industrial connectors and MIL-STD-810F/G compliance for shock and vibration, providing a sealed, service-friendly interface for harsh environments.

Key features

• 12.3" 1920 x 720 PCAP multi-touch panel
• Front IP65 dust and water protection
• M12 type connectors for industrial I/O and power
• VGA video input and 1 x USB for touch
• Panel brightness: 1000 nits; contrast ratio 1000:1
• Fanless metal housing with aluminum bezel
• Compliant with MIL-STD-810F/G for shock and vibration

Certifications

• CE
• FCC
• MIL-STD-810F/G (shock & vibration compliance)
• IP65 front protection (dustproof and waterproof)

Applications & benefits
Designed for industrial automation, food & beverage, chemical processing, transportation and other harsh environments. M12 connectors and IP65 front sealing reduce contamination and moisture ingress risk. VGA + USB touch support integration with legacy systems and modern controllers, while the rugged metal, fanless design minimizes maintenance.

Technical specifications

• Display size: 12.3 inches
• Resolution: 1920 x 720
• Touch type: Projected Capacitive Multi Touch (PCAP)
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 88/88/88/88
• Display color: 16.7M colors
• Operating humidity: 10% to 95% RH
• Operating temperature: -15 ~ 55°C
• Storage temperature: -30 ~ 60°C
• Shock: 40g for 11ms
• Vibration: 1.48 / 1.90 / 2.24 g rms for XYZ, 5-500Hz
• IP rating: IP65 (front)
• I/O: 1 x VGA (video), 1 x USB (touch)
• Dimensions: 325.02 x 146.5 x 44.9 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 9-36V DC (M12 type)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories (examples): Quick Start Guide (hardcopy), VGA cable, USB for touch cable, M12 power cable (model dependent), I/O protective caps x3
