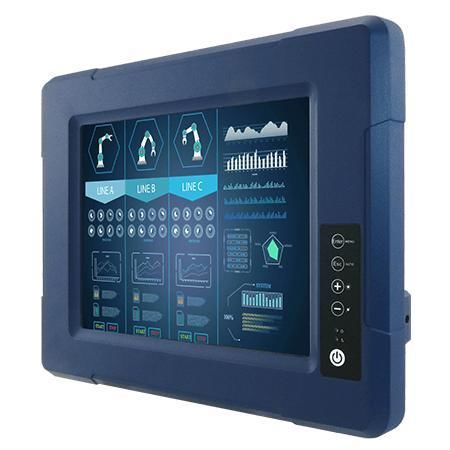

LCD monitor R08T200-VMU1

resistive touch screen5-wire resistive touch screenindustrial

Overview
The 8.4-inch G-WIN VM resistive touch display R08T200-VMU1 by Winmate is a compact industrial HMI designed for vehicle-mounted and harsh-environment applications. It provides a pressure-sensitive resistive touch usable with gloves or stylus, a front IP65-rated panel (except I/O), anti-corrosion aluminum housing, fanless cooling and wide DC power input suitable for mobile and industrial power sources.

Key features

• 8.4" panel, 800 x 600 resolution, 600 nits brightness
• 5-wire / 4-wire resistive touch (single-touch, pressure-sensitive); protection glass option
• Operating temperature: -10°C to +55°C (specified)
• Anti-corrosion aluminum die-cast housing with fanless design
• Front IP65 dust/water protection; optional M12 connectors for waterproof connections
• Wide-range DC input: 10–60V DC (3-pin terminal block); variants 9–36V DC referenced

Certifications

• CE
• FCC

Rugged design highlights

• Easy-to-clean flat front — edge-to-edge aluminum front for washdown and fluid resistance
• Fanless cooling — reduces dust ingress and improves reliability
• Shock & vibration options — MIL-STD-810G compliance (optional), optical bonding and anti-moisture treatment
• Multiple mounting — VESA and yoke mount options

Typical applications

• Vehicle-mounted operator terminals (logistics, construction, mining)
• Human-machine interfaces in factory automation
• Machine monitoring and control panels
• Marine and port operations dashboards
• Food & beverage and wet-process lines

Customization & options
OEM/ODM options include optical bonding, anti-glare/anti-reflective coatings, connector customization, touch tuning, additional I/O and specific mounting solutions to match project requirements.

Technical specifications (summary)

• Model: R08T200-VMU1
• Brand: Winmate
• Display size: 8.4 inches
• Touch / Glass: Resistive touch (5/4-wire) optional; protection glass option
• Resolution: 800 x 600
• Brightness: 600 nits
• Contrast ratio: 600:1
• Active area: 170.4 x 127.8 mm
• Dimensions: 277 x 219.5 x 59.6 mm
• Weight: 2.2 kg
• Mounting: VESA; yoke mount
• Housing: anti-corrosion aluminum
• Cooling: fanless
• Operating temp: -10°C to 55°C
• Storage temp: -30°C to 70°C
• Shock/vibration: MIL-STD-810G options
• IP rating: front IP65 (except I/O)
• Certifications: CE, FCC
• IO: USB Type-A (touch, optional); RS232 D-sub9 (touch, optional); VGA (default); HDMI (optional)
• Power input: 10–60V DC (3-pin terminal block)
• Buttons: Power, Adjust up/down, ESC (Auto), Menu
• Included accessories: open wire cable with terminal block, external VGA cable, VESA screws
