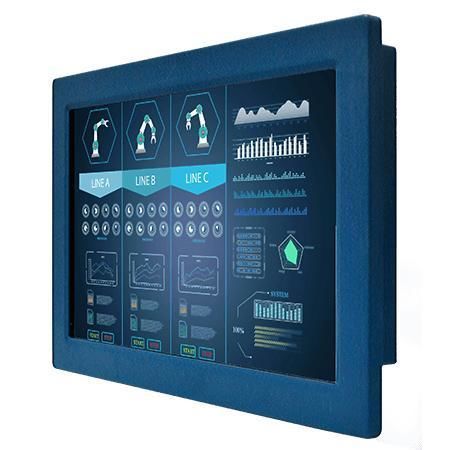

LCD monitor R12L100-VMM2

touch screen5-wire resistive touch screenindustrial

Overview
Winmate R12L100-VMM2 is a 12.1-inch industrial display from the G-WIN VM series designed for heavy-duty vehicle and industrial applications. It combines a high-brightness panel with a fanless, corrosion-resistant aluminum housing and a wide DC input range for use in mobile and harsh environments.

Key features

• 12.1 inches, 1024 x 768 resolution, 500 nits panel brightness
• 5-wire resistive touch screen (optional); protection glass without touch (optional)
• Wide operating temperature: -10°C to +55°C
• Fanless design and aluminum enclosure for corrosion resistance
• Wide-range isolated DC input: 10~60V DC (3-pin terminal block)
• Front IP65 dust and water protection; M12 waterproof connectors
• Optional MIL-STD-810G shock and vibration compliance

Certifications

• CE
• FCC

Technical specifications

• Model: R12L100-VMM2
• Display size: 12.1 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 1000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 16.2M colors
• Active area: 245.76 x 184.32 mm
• Dimensions: 307.2 x 245 x 43.9 mm
• Weight: 3.1 kg
• Mounting: VESA mount; Yoke mount
• Enclosure: Aluminum housing
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (Optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65
• USB port: 1 x USB Type-A for touch control (Optional)
• Serial port: 1 x RS232 D-sub9 for touch control (Optional)
• Video: 1 x VGA input (Default); 1 x HDMI input (Optional)
• Indicator: 1 x LED for power; 1 x LED for status
• Power input: 1 x 10~60V DC, 3-pin terminal block
• Control buttons: Power; Adjust up; Adjust down; ESC (Auto); Menu
• Standard accessory: Open wire cable with terminal block connector; External VGA cable; VESA screws; User manual (hardcopy); Touch driver CD; 3-pin terminal block
• Optional accessory: Yoke mount stand; 100~240V AC to DC 50W adapter with power cord; External USB/COM cable for touchscreen control; External HDMI cable
