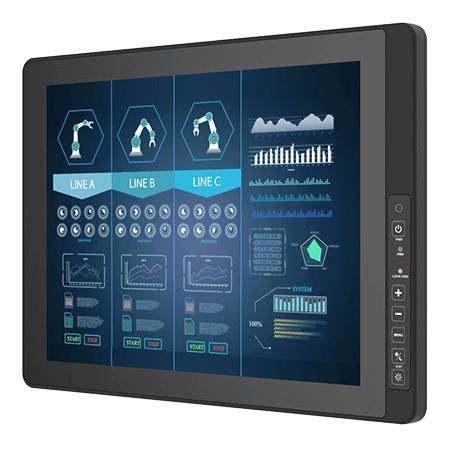

LCD monitor R15L100-VMC3-P(HB)

multitouch screenprojected capacitive touchscreen5-wire resistive touch screen

Key Features

• 15" panel, 1024 x 768 resolution, 300 nits standard (optional 1000 nits HB)
• P-cap multi-touch screen (Projected Capacitive)
• Optional True Flat 5-Wire Resistive Touch
• Optional Anti-Reflective Protection Glass and optical bonding
• Aluminum die-cast housing with anti-corrosion treatment
• Built-in ambient light sensor for automatic brightness adjustment
• Front IP65 (except I/O parts)
• Wide operating temperature: -10 to 55°C
• Wide range 9 to 36V DC input with isolation
• Anti-shock & vibration compliant with MIL-STD-810F/G

Certifications

• CE
• FCC

Overview
The R15L100-VMC3-P(HB) is a 15-inch vehicle-mount display from the G-WIN VM Series engineered for heavy-duty logistics and transportation environments. It provides reliable operation in forklifts, trucks, warehouses, ports and agricultural vehicles through a rugged mechanical design, vehicle power compatibility and high-readability display options.

Rugged Design for Vehicle Operations
Durable aluminum die-cast housing with anti-corrosion treatment provides structural integrity and heat dissipation. Designed to meet MIL-STD-810F/G for shock and vibration to ensure continued operation under vehicle mechanical stress.

Superior Clarity and Readability
Standard 300-nit panel with optional 1000-nit high-brightness panel for sunlight readability. Supports optical bonding and anti-reflective options; ambient light sensor automates backlight adjustment for changing lighting conditions.

Wide Range Power with Isolation
Designed for vehicle power systems with 9–36V DC isolated input to protect internal electronics from spikes, surges and electrical noise common in vehicle ignition and battery systems.

Intuitive Touch & IP65 Protection
Standard P-Cap multi-touch for responsive interaction; optional True Flat 5-wire resistive touch for glove use. Front panel IP65 rating ensures dust-tight protection and resistance to water jets for easy cleaning.

I/O and Control
Configurable touch control interfaces and video inputs suitable for vehicle installations. Control keys support power, brightness adjustment, menu/day-night mode and LED indicators; built-in ambient light sensor automates brightness adaptation.

Accessories & Options
Standard accessories: open wire cable with terminal block, external VGA cable, external USB/COM cable for touchscreen control, VESA screws. Optional: yoke mount stand, 100~240V AC to DC 50W adapter, external RS232 COM cable, external HDMI cable.

Ordering Information
Product variants include base P-Cap model and optional variants: R15L100-VMC3-R(HB) (resistive touch option) and R15L100-VMC3-G(HB) (anti-reflective glass option).

Product FAQs (select)

• Primary application: Vehicle-mount display for heavy-duty logistics and transport (forklifts, trucks, warehouses, ports, agricultural vehicles).
• Sunlight readability: Optional 1000-nit HB panel, optical bonding and anti-reflective coatings.
• Vibration handling: Compliant with MIL-STD-810F/G; rugged aluminum housing.
• Mounting: Standard VESA holes for vehicle cradles and RAM mounts.
• Power handling: 9–36V DC isolated input to protect against vehicle voltage fluctuations.
• Water and dust resistance: Front IP65.
• Touch technologies: Standard P-Cap; optional True Flat 5-wire resistive for glove use.
• Brightness control: Integrated ambient light sensor.
• Operating temperature: -10°C to 55°C.
• Housing durability: Anti-corrosion aluminum die-cast housing.

caractéristiques / spécifications techniques

• Model: R15L100-VMC3-P(HB)
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Touch / Glass: Projected Capacitive Multi Touch; optional True Flat 5-Wire Resistive; optional Anti-Reflective Protection Glass
• Panel brightness: 300 nits standard; 1000 nits (optional HB)
• Contrast ratio: 2000:1
• Viewing angles: 88,88,88,88
• Display colors: 16.2M Colors
• Active area: 304.1 x 228.1 mm
• Dimension: 379.4 x 278.4 x 58 mm
• Weight: 3.8 kg
• Mounting: VESA mount
• Enclosure: Aluminum housing (die-casting) with anti-corrosion treatment
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65 (except I/O parts)
• Certifications: CE, FCC
• USB: 1 x USB Type-A for touch control (optional)
• Serial: 1 x RS232 D-sub9 for touchscreen control (optional)
• Video: 1 x VGA input (default); 1 x HDMI input (optional)
• Indicator: 1 x LED indicator for power; 1 x LED indicator for status
• Power input: 1 x 9~36V DC via 3-pin terminal block (isolated)
• Control keys: Power, +, -, Menu (auto/manual brightness), Day/Night mode, LED indicator adjustment, Ambient Light sensor
• Standard accessories: Open wire cable with terminal block, external VGA cable, external USB/COM cable for touchscreen control, VESA screws
• Optional accessories: Yoke mount stand, 100~240V AC to DC 50W adapter, external RS232 COM cable, external HDMI cable
• Ordering options: R15L100-VMC3-R(HB) (Resistive Touch optional); R15L100-VMC3-G(HB) (Anti-Reflective Protection Glass optional)
