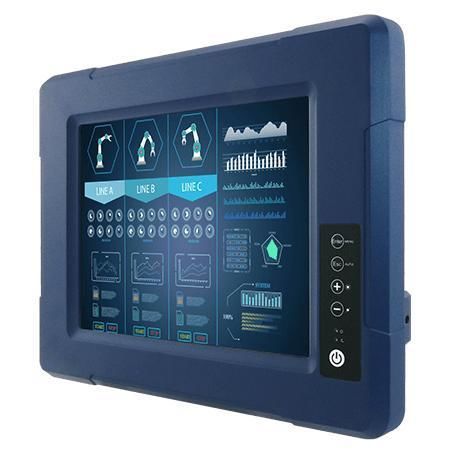

5-wire resistive touch screen monitor R10L600-VMP1

industrialfor industrial machinesfor vehicles

Overview
The R10L600-VMP1 is a 10.4-inch G-WIN VM Series rugged vehicle-mount industrial display designed for heavy-duty vehicles and harsh industrial environments. It provides a flat, easy-to-clean aluminum front, front-side IP65 protection, fanless cooling and a wide isolated DC power input to accommodate vehicle and industrial power systems.

Key Features

• 10.4-inch SVGA panel (800 x 600), 600 nits brightness
• Optional 5-wire resistive touch or protection glass without touch
• Wide operating temperature range: -10°C to 55°C (product configurations vary)
• Corrosion-resistant aluminum housing with fanless design
• Front IP65 dust and water protection (I/O ports excluded); M12 connectors available
• Isolated wide-range DC input: 10–60V DC (variations include 9–36V)
• Designed for shock and vibration resistance; optional MIL-STD-810G conformity; EN50155 compliance for vehicle applications

Certifications

• CE
• FCC
• EN50155 (where applicable)

Product details / Features

• Flat, easy-to-clean front: Edge-to-edge aluminum bezel and flat surface facilitate cleaning and resist liquid ingress.
• Ingress protection: Front IP65 rating; optional M12 connectors for waterproof industrial cabling.
• Fanless cooling: Passive thermal design eliminates internal dust circulation for improved reliability in dusty environments.
• Flexible power options: Supports isolated DC inputs (10–60V typical, 9–36V variants) for vehicle and industrial installations.
• Rugged construction: Aluminum die-cast housing, optical bonding with anti-moisture treatment and resistive coating for enhanced shock/vibration durability.

Technical specifications

• Model: R10L600-VMP1
• Display: 10.4-inch SVGA (800 x 600); Panel brightness: 600 nits; Contrast ratio: 400:1; Colors: 262K; Active area: 211.2 x 158.4 mm; View angles: 70/70/70/60
• Touch / Glass: 5-wire resistive touch (optional) or protection glass without touch (optional)
• Mechanical: Dimensions 315 x 250 x 67 mm; Weight approx. 2.9 kg; Mounting: VESA, Yoke Mount; Enclosure: Aluminum
• Environment: Operating temperature -10°C to 55°C; Storage -30°C to 70°C; Operating humidity 10%–90% RH non-condensing
• Ruggedness: Optional MIL-STD-810G shock & vibration compliance
• IP Rating: Front IP65 (except I/O)
• I/O: VGA (default), HDMI (optional); 1x USB Type-A (touch, optional); 1x RS232 D-sub9 (touch, optional)
• Indicators: LED power, LED status
• Power: 1x isolated 10–60V DC input via 3-pin terminal block (9–36V variants available)
• Controls: Power, Adjust up, Adjust down, ESC (Auto), Menu
• Accessories: Open wire cable with terminal block, external VGA cable, VESA screws; optional yoke mount, 100–240V AC→DC 50W adapter, external USB/COM and HDMI cables
