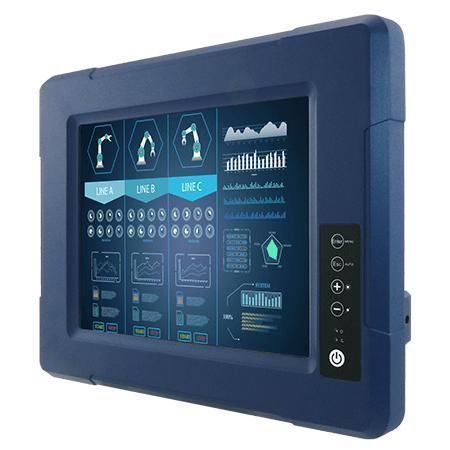

5-wire resistive touch screen monitor R10L100-VMT2(HB)

industrial10.4"1024 x 768

Product
Winmate 10.4-inch G-WIN VM Series industrial display R10L100-VMT2(HB) designed for heavy vehicles and industrial applications.

Key Features

• 10.4-inch SVGA panel (1024 x 768)
• Front protection IP65 (I/O parts excluded)
• Aluminum housing with anti-corrosion treatment
• Fanless cooling; M12 waterproof connectors available
• 5-wire resistive touchscreen (optional); anti-reflection/protection glass (optional)
• Isolated wide DC input 10–60V via 3-pin terminal block
• Rugged design: MIL-STD-810G shock & vibration options

Overview
Flat edge-to-edge aluminum front enables easy cleaning and resistance to liquid droplets. Optical bonding and anti-moisture treatment improve display durability for harsh environments. Fanless design reduces dust circulation and extends service life in dusty applications.

I/O and Control

• Video inputs: 1 x VGA (default); 1 x HDMI (optional)
• Touch control: 1 x USB Type-A or 1 x RS232 D-sub9 (optional)
• Indicators & controls: LED power/status; Power, Adjust Up, Adjust Down, ESC (Auto), Menu buttons

Certifications
CE, FCC

Accessories & Options

• Included: open wire cable with terminal block connector, external VGA cable, VESA screws, user manual
• Optional: yoke mount, 100–240V AC to DC 50W adapter, external USB/COM cable, external HDMI cable, high-brightness panel, anti-reflective protection glass

Technical specifications

• Display size: 10.4 inches; Resolution: 1024 x 768 (SVGA)
• Brightness: 350 nits; Contrast ratio: 1000:1; Colors: 16.2M; Active area: 210.4 x 157.8 mm
• Mechanical dimensions: 315 x 250 x 67 mm; Weight: 2.9 kg
• Mounting: VESA, Yoke; Enclosure: Aluminum housing
• Operating temperature: -10°C to 55°C; Storage: -30°C to 70°C; Operating humidity: 10%–90% RH non-condensing
• Shock & vibration: MIL-STD-810G options; IP rating: Front IP65
• Power input: 10–60V DC, 3-pin terminal block
