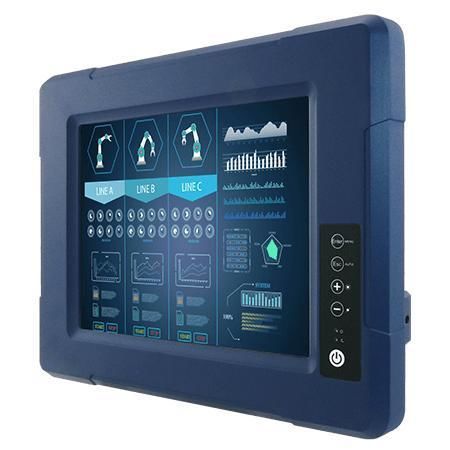

LCD monitor R10L100-VMP3

resistive touch screen5-wire resistive touch screenfor industrial machines

Product overview
Winmate R10L100-VMP3 is a 10.4-inch vehicle-mount industrial display designed for heavy-duty vehicles and harsh industrial environments. Flat edge-to-edge aluminum panel, fanless cooling and front IP65 protection (excluding I/O) make it suitable for mobile and fixed industrial installations.

Key features

• 10.4-inch panel, 640 x 480 resolution, 450 nits
• 5-wire resistive touch (optional)
• Wide operating temperature: -10°C to 55°C
• Anti-corrosion aluminum housing, fanless design
• Front IP65 dust and water protection (except I/O ports)
• 10~60V DC isolated wide-range power input (3-pin terminal block)
• EN50155 compliance for vehicle applications (where specified)

Certifications

• CE
• FCC

Easy-to-clean flat surface
Edge-to-edge aluminum front enables quick cleaning and resists water and liquid droplets, simplifying maintenance in vehicle cabins and industrial stations.

Dust and water protection
Front panel and connector design meet IP65; M12 connectors are available for waterproof I/O in demanding industrial setups.

Fanless cooling system
Fanless architecture eliminates forced-air circulation, reducing particulate ingress and improving reliability in dusty environments.

Power input and mounting
Supports wide DC input via secure 3-pin terminal-block connection. Mounting options include VESA and optional yoke mount for vehicle or panel integration.

Shock and vibration
Optional MIL-STD-810G testing, aluminum die-cast housing, optical bonding and anti-moisture treatment increase resistance to shock and vibration for mobile use.

Accessories and optional items

• Open wire cable with terminal block connector
• External VGA cable
• VESA screws
• Yoke mount stand (optional)
• 100~240V AC to DC 50W adapter with power cord (optional)
• External USB/COM cable for touchscreen control (optional)
• External HDMI cable (optional)

Technical specifications

• Display size: 10.4 inches
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Resolution: 640 x 480
• Panel brightness: 450 nits
• Contrast ratio: 700:1
• Viewing angles: 80, 80, 80, 60
• Display color: 16.2M colors
• Active area: 211.2 x 158.4 mm
• Dimensions: 315 x 250 x 67 mm
• Weight: 2.9 kg
• Mounting: VESA mount; Yoke mount (optional)
• Enclosure: Aluminum housing
• Cooling: Fanless
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65 (except I/O)
• Certifications: CE, FCC; EN50155 compliance noted
• USB: 1 x USB Type-A for touch control (optional)
• Serial: 1 x RS232 D-sub9 for touch control (optional)
• Video: 1 x VGA input (default); 1 x HDMI input (optional)
• Indicators: LED power; LED status
• Power input: 1 x 10~60V DC, 3-pin terminal block (isolated)
• Buttons / controls: Power, Adjust up, Adjust down, ESC (Auto), Menu
• Included accessories: Open wire cable with terminal block, external VGA cable, VESA screws, user manual, touch driver CD
