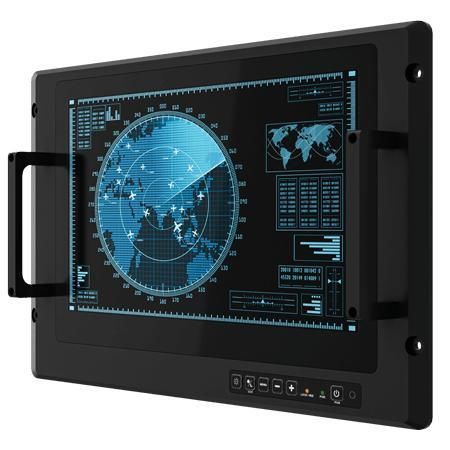

TFT monitor W15L100-MLB3FP

multitouch screenprojected capacitive touchscreen15.6"

Overview
W15L100-MLB3FP is a 15.6" 4K2K UHD rack-mount defence-grade display designed for mission-critical control rooms and command centres. It features a rugged metal enclosure, MIL-type power connector and compliance with multiple MIL-STD profiles. The display supports projected capacitive (PCAP) multi-touch as standard and offers optional input and touch configurations, plus an ambient light sensor for auto brightness control.

Key Features

• 15.6" 4K2K UHD (3840 x 2160) TFT display
• Projected capacitive (PCAP) multi-touch screen (default); PCAP with ITO film or other touch options available
• Compliant with MIL-STD 810G / MIL-STD 461 (EMC) profiles
• Rack-mount mechanical design (8U) and VESA-compatible mounting
• Defence-grade power connector: MIL-DTL-38999/1
• Power: AC 100–240V ±10% (default); DC 9–36V ±10% (optional)
• On-screen display (OSD) physical controls on front panel

Certifications

• MIL-STD 461F / MIL-STD 461G (EMC)
• MIL-STD 810G / MIL-STD 810H (environmental, vibration, shock)
• FCC, CE
• RoHS2, REACH

Design & Ergonomics
The unit delivers UHD image density (four times Full HD) on a 500 nits panel with 1400:1 contrast and wide viewing angles. Heavy-duty steel construction with black front bezel and dark grey rear case provides mechanical robustness. Front-panel OSD buttons and dedicated Day/Night mode keys enable fast local control; the built-in ambient light sensor provides automatic brightness adjustment to optimise readability in varying lighting conditions.

Accessories (supplied and optional)

• Supplied: user manual (hardcopy), power cord MIL-DTL-38999/1, 1 x VGA cable, 1 x DVI cable, 2 x HDMI cables, 1 x DisplayPort cable
• Optional: audio cable, additional MIL-type lockable DC/USB connector options

Technical specifications

• Model: W15L100-MLB3FP
• Brand: Winmate
• Display size: 15.6 inches
• Resolution: 3840 x 2160 (4K2K UHD)
• Touch / Glass: PCAP multi-touch (default); PCAP with ITO film optional; resistive / IR options referenced
• Panel brightness: 500 nits
• Contrast ratio: 1400:1
• Viewing angles: 89° / 89° / 89° / 89° (L/R/U/D)
• Display color: ~1,073.7M colors
• Active area: 344.217 x 193.762 mm
• Video inputs: 1 x VGA; 1 x DVI; 1 x DisplayPort 1.2 (default); 2 x HDMI 2.0 (optional)
• USB: 1 x USB for touch (optional)
• Serial: 1 x RS232 for remote control (optional)
• Audio: 1 x Audio Line In (optional)
• Power rating: AC 100–240V Universal ±10% (default); DC 9–36V ±10% (optional)
• Mechanical dimensions: 457.6 x 287.7 x 68.8 mm
• Weight: 8.5 kg
• Mounting: VESA mount / Rack mount (8U rack mechanical design)
• Enclosure: Metal, heavy-duty steel construction
• Cooling: Fanless design
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -10 ~ 60 °C
• Operating humidity: 10% to 95% RH
• Shock & vibration: 10G shock (11 ms) and 5–500 Hz 1G RMS random vibration (MIL‑STD referenced)
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92 (USA); NATO SDIP-27
• Controls: power, +/-, menu, Day/Night mode, LED indicator brightness adjustment, ambient light sensor
