TFT monitor W27L100-MLA3FG

multitouch screenprojected capacitive touchscreenfor displays

Overview

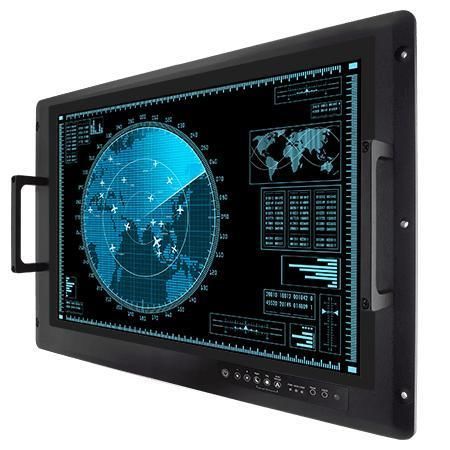

The 27-inch 4K2K UHD defence rack-mount display W27L100-MLA3FG is designed for command and control, simulators and mission-critical defence environments. Native 3840 x 2160 resolution delivers detailed imagery. The unit features AR protective glass, an 8U rack-mount mechanical design with VESA support, MIL-DTL-38999 power connector and defence-grade EMC and environmental compliance options.

Key Features

• 27-inch 4K2K UHD TFT display (3840 x 2160) with AR protection glass
• MIL-STD 810G / MIL-STD 461E/F/G compliance notes available per configuration
• Rack-mount mechanical design (8U) and VESA mounting support
• Defence-grade power connector MIL-DTL-38999/1 (type I) with optional type III I/O
• AC 100–240V universal (±10%) default; DC 9–36V (±10%) optional
• Front physical OSD controls and built-in ambient light sensor for auto-brightness

Certifications

• CE
• FCC
• MIL-STD 461F / 461G compliance items (CE/RE/CS/RS) documented per configuration
• MIL-STD 810G / 810H environmental test coverage (vibration, humidity, transit drop, etc.)

Product Highlights

• UHD 4K2K panel provides four times the pixel density of HD for precise situational awareness
• Tested to relevant MIL-STD procedures to ensure operation in harsh defence conditions
• Ergonomic rack/console integration for command centres and control rooms
• MIL-DTL-38999 power I/O options ensure compatibility with existing defence cabling
• Auto and manual Day/Night modes with ambient light sensing for optimized visibility

Specifications

• Model: W27L100-MLA3FG
• Size: 27.0 inches
• Resolution: 3840 x 2160 (4K2K UHD)
• Touch / Glass: AR Glass (default); Projected Capacitive Multi Touch optional
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Display Color: 1.07B Colors
• Active Area: 596.16 x 335.34 mm
• Mechanical Dimensions: 697.2 x 442 x 73.9 mm; enclosure: metal; fanless design
• Mounting: VESA mount / Rack mount (8U)
• IO Ports: 1 x VGA, 1 x DVI, 1 x DisplayPort 1.2 (default), 2 x HDMI 2.0 (optional); 1 x RS232 (optional); 1 x Audio Line In (optional)
• Power Rating: AC 100~240V Universal ±10% (default); DC 9~36V ±10% (optional)
• Operating Humidity: 10% to 95% RH
• Operating Temperature: 0 ~ 50 °C; Storage Temperature: -10 ~ 60 °C
• TEMPEST / NATO options: NSA NSTISSAM TEMPEST/1-92, SDIP-27 (optional)
• MIL-STD Compliance: MIL-STD 461G (CE101, CE102, RE101, RE102, CS118 default; additional CS/RS items optional); MIL-STD 810H test coverage as specified
• Accessories (standard): User Manual (hardcopy), Power Cord MIL-DTL-38999/1, VGA cable, DVI cable, 2 x HDMI cables, DP cable
