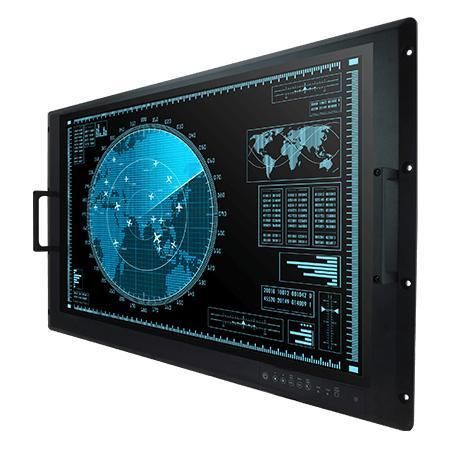

TFT monitor W32L100-MLA1FG

industrial32"3840 x 2160

Overview
W32L100-MLA1FG is a 32" 4K2K UHD Protective Glass Rack Mount Defence Display designed for mission-critical and defence applications. It features a 3840 x 2160 native resolution UHD panel, AR protection glass (default) with optional EMI ITO glass, rack-mount mechanical design with VESA support, MIL-grade certifications and defence-grade connectors. The display includes convenient on-screen and physical OSD controls and supports AC or optional DC power input.

Key Features

• 32" 4K2K UHD Protective Glass Rack Mount Defence Display (3840 x 2160) native resolution
• Compliant with MIL-STD 810G / MIL-STD 461E/F
• Rack mount mechanical design; supports VESA mount
• AR protection glass (default); EMI ITO glass optional
• Defence-grade power connector (MIL-DTL-38999/1)
• AC 100~240V, Universal, ±10%; DC 9~36V ±10% (optional)
• Convenient on-screen display controls and front physical OSD buttons

Certifications & Compliance

• Certifications: CE, FCC
• Compliance: MIL-STD 461G (CE101, CE102, RE101, RE102, CS118 default; additional CS*/RS* optional), NATO STANAG 4370/AECTP501 variants (default and optional)
• Environmental testing per MIL-STD 810H/F/G (vibration, humidity, transit drop / shock tests depending on version)

Product Highlights

• 4K2K UHD TFT Panel offering 4x pixel density vs. HD for industrial defence-grade imaging
• Reliable operation tailored to defence environments with in-house reliability testing
• Ergonomic command-console design for control-room and command-center applications (rack mount 8U)
• Defence-grade connectors: MIL-DTL-38999 type I power input; optional type III I/O connectors for cable-to-panel integration
• Auto-brightness control with built-in ambient light sensor

caractéristiques / spécifications techniques

• Display - Size: 32.0 inches
• Display - Touch / Glass: AR Protection Glass (Default); EMI ITO Glass (Optional)
• Display - Resolution: 3840 x 2160
• Display - Panel Brightness: 350 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Display Color: 1.07B Colors
• Display - Active Area: 708.48 x 398.52 mm
• Environment - Operating Humidity: 10% to 95% RH
• Environment - Operating Temperature: 0 ~ 50°C
• Environment - Storage Temperature: -10 ~ 60°C
• Environment - TEMPEST (optional): USA NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)
• Compliance - MIL-STD 461G: USA MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default); additional MILSTD461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional)
• Compliance - NATO STANAG 4370/AECTP501: NCE01, NCE02, NRE01, NRE02, NCS12 (Default); additional optional NCS01, NCS07, NCS08, NCS09, NRS01, NRS02
• Compliance - MIL-STD 810H: Vibration Method 514.6, Humidity Method 507.6, Transit Drop Method 516.6 (default); NATO optional vibration/shock/drop tests per STANAG
• IO Ports - Serial Port: 1 x RS232 for remote control (Optional)
• IO Ports - Video: 1 x VGA; 1 x DVI; 1 x DisplayPort 1.2 (Default); optional 2 x HDMI 2.0
• IO Ports - Audio: 1 x Audio Line In (Optional)
• Mechanical - Dimension: 825 x 486 x 88.3 mm
• Mechanical - Mounting: VESA mount / Rear mount (rack mount)
• Mechanical - Enclosure: Metal
• Mechanical - Cooling System: Fanless design
• Accessory - Included: 1 x User Manual (Hardcopy); 1 x Power Cord MIL-DTL-38999/1; 1 x VGA cable; 1 x DVI cable; 2 x HDMI cables; 1 x DP cable
• Accessory - Optional: 1 x Audio cable
• Power - Power Rating: AC 100 ~ 240V, Universal, ±10% (Default); DC 9 ~ 36V, ±10% (Optional)
• Control - Buttons: 1 x Power key; 1 x "+" key (increase brightness); 1 x "-" key (decrease brightness); 1 x "Menu" key (auto/manual brightness); 1 x Day/Night Mode button; 1 x LED indicator brightness adjustment; 1 x Ambient Light sensor
