TFT monitor W32L100-MLA1FP

multitouch screenprojected capacitive touchscreenindustrial

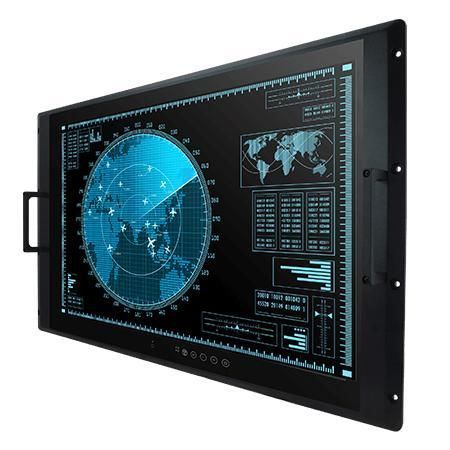

Overview 32-inch 4K2K UHD rack-mount display (native 3840 x 2160) using an Innolux TFT panel, engineered for mission-critical defence and industrial command-center applications. Built and tested to MIL‑STD‑810G and MIL‑STD‑461F standards to ensure reliable operation in harsh environments. Mechanical rack design (8U) with VESA compatibility optimizes integration into ergonomic consoles. Defence-grade power and I/O connectors (MIL‑DTL‑38999 type I; type III optional), front physical OSD controls and an ambient light sensor enable straightforward local control and automatic brightness adjustment.

Key Features

• 32" 4K2K UHD rack-mount display (3840 x 2160) native resolution
• Compliant with MIL‑STD‑810G / MIL‑STD‑461E/F (EMC & environmental tests)
• Rack-mount mechanical design (8U) and VESA mounting support
• Projected Capacitive (PCAP) multi-touch screen (default); PCAP with ITO film optional
• Defence-grade power connector MIL‑DTL‑38999/1 (type I) – type III available on selected models
• AC 100~240V universal input (±10%) standard; DC 9~36V (±10%) optional
• Front physical OSD buttons and built-in ambient light sensor for auto-brightness

Certifications

• CE
• FCC
• MIL‑STD‑461F / MIL‑STD‑461G (selected CE/RE/CS/RS test items)
• MIL‑STD‑810G / MIL‑STD‑810H (vibration, humidity, transit drop, shock tests; NATO STANAG optional)

Technical specifications

• Model: W32L100-MLA1FP
• Size: 32.0 inches
• Resolution: 3840 x 2160
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); PCAP with ITO Film (Optional)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 1.07B Colors
• Active Area: 708.48 x 398.52 mm
• Operating Humidity: 10% to 95% RH
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Compliance: MIL‑STD‑461G (default CE101, CE102, RE101, RE102, CS118; additional CS/RS items optional), NATO STANAG 4370 / AECTP501 (default and optional items), MIL‑STD‑810H (vibration Method 514.6, humidity Method 507.6, transit drop Method 516.6)
• USB Port: 1 x USB for touch
• Serial Port: 1 x RS232 for remote control (optional)
• Video Inputs: 1 x VGA; 1 x DVI; 1 x DisplayPort 1.2 (Default); 2 x HDMI 2.0 (Optional)
• Audio: 1 x Audio Line In (Optional)
• Dimensions (mechanical): 825 x 486 x 88.3 mm
• Mounting: VESA mount / Rear mount (Rack)
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories included: 1 x User Manual (Hardcopy); 1 x Power Cord MIL‑DTL‑38999/1; 1 x VGA Cable; 1 x DVI Cable; 2 x HDMI Cables; 1 x DP Cable
• Optional Accessory: 1 x Audio cable
• Power Rating: AC 100~240V, Universal, ±10% (Default); DC 9~36V, ±10% (Optional)
• Control Buttons: 5 x Capacitive Touch Keys (Power; Brightness+; Brightness-; OSD/Enter; ESC)
