TFT monitor W24L100-MLL1FP
multitouch screenprojected capacitive touchscreenfor HMI interface

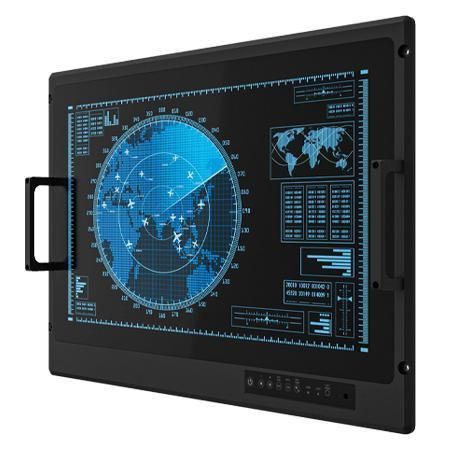

TFT monitor - W24L100-MLL1FP - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / for HMI interface
TFT monitor - W24L100-MLL1FP - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / for HMI interface
TFT monitor - W24L100-MLL1FP - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / for HMI interface - image - 2
TFT monitor - W24L100-MLL1FP - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / for HMI interface - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
TFT, multitouch screen, projected capacitive touchscreen
Applications
for HMI interface
Display size
23.8"
Resolution
3840 x 2160
Mounting
VESA mounting, rack-mount
Other characteristics
fanless, HDMI, USB, VGA, DVI port, DisplayPort, wide viewing angle, high-resolution, rugged, MIL-STD-810G, MIL-STD-810
Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Overview
  • 24-inch rack-mount defense display W24L100-MLL1FP with native 4K2K UHD resolution (3840 x 2160) and 23.8 inches TFT panel.
  • Projected capacitive (PCAP) multi-touch by default; mechanical design for 8U rack installation and VESA support for console integration.
  • Designed and tested to military standards for command-and-control environments; MIL-DTL-38999 power connector standard.


Main features
  • 23.8 inches 4K2K UHD (3840 x 2160) TFT panel with PCAP multi-touch.
  • Compliance with MIL-STD (examples: MIL-STD-810G/810H, MIL-STD-461 variants depending on configuration).
  • MIL-DTL-38999 series power connector; optional MIL-DTL-38999 I/O variants.
  • AC 100–240 V ±10% (default); DC 9–36 V ±10% optional.
  • Front physical OSD buttons, ambient light sensor and automatic brightness adjustment.


Certifications and compliance
  • Certifications: CE, FCC.
  • MIL test references: MIL-STD-461 (variants such as 461F / 461G depending on configuration), MIL-STD-810 (810G / 810H references depending on configuration).
  • Optional NATO / TEMPEST references: NATO STANAG 4370 / AECTP501 and NSA NSTISSAM TEMPEST/1-92 listed as options.


Functions and design
  • Rack-optimized mechanical design for command centers and control rooms (8U rack integration).
  • PCAP multi-point touchscreen for operator interaction and collaborative use.
  • Physical quick-access buttons: Power, Brightness +/-, Menu (auto/manual brightness), Day/Night mode, LED indicator; integrated ambient light sensor.
  • Metal enclosure and fanless thermal design.


Connectivity and I/O
  • Video: 1 x VGA, 1 x DVI, 1 x DisplayPort 1.2 (default), 2 x HDMI 2.0 (optional).
  • USB: 1 x USB for touch (optional).
  • Serial: 1 x RS232 for remote control (optional).
  • Audio: 1 x Audio Line In (optional).


Accessories
  • Included: 1 x user manual (hardcopy), 1 x MIL-DTL-38999/1 power cord, 1 x VGA cable, 1 x DVI cable, 2 x HDMI cables, 1 x DP cable.
  • Optional accessory: 1 x audio cable.


Technical specifications
  • Model: W24L100-MLL1FP
  • Brand: Winmate
  • Display size: 23.8 inches
  • Resolution: 3840 x 2160 (4K2K UHD)
  • Touch / Glass: Projected Capacitive multi-touch (default); PCAP with ITO film (optional)
  • Panel brightness: 540 nits
  • Contrast ratio: 1200:1
  • View angles: 89, 89, 89, 89
  • Display colors: 1.07B
  • Active area: 525.65 x 295.70 mm
  • Dimensions (W x H x D): 630 x 430.5 x 66 mm
  • Weight: 13 Kg
  • Mounting: VESA mount / Rack mount (8U mechanical design)
  • Enclosure: Metal
  • Cooling system: Fanless design
  • Power rating: AC 100–240V ±10% (default); DC 9–36V ±10% (optional)
  • Operating temperature: 0 ~ 50 °C
  • Storage temperature: -10 ~ 60 °C
  • Operating humidity: 10% to 95% RH
  • Optional TEMPEST / NATO: NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
