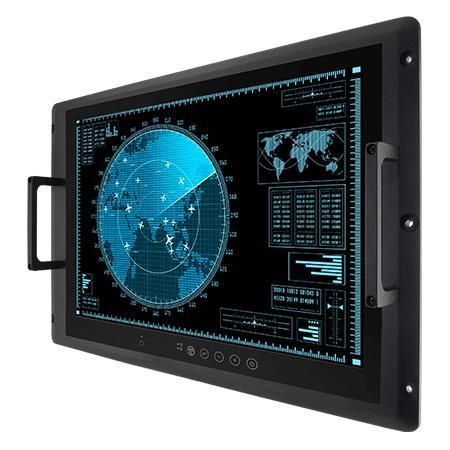

Multitouch screen monitor W27L100-MLA3FP

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
27-inch 4K2K UHD projected-capacitive (PCAP) rack-mount defence display with native 3840 × 2160 resolution. Designed for mission-critical defence applications, it features an 8U rack mounting profile, VESA compatibility, MIL-DTL-38999 type I power connector, on-screen display (OSD) controls with five capacitive touch keys, an auto-brightness ambient light sensor, and a fanless metal enclosure. Default AC 100–240 V input; optional DC 9–36 V.

Key Features

• 27-inch 4K2K UHD (3840 × 2160) native resolution
• Projected capacitive multi-touch (PCAP); optional PCAP with ITO film
• Rack-mount mechanical design (8U) and VESA support
• Military-grade power connector MIL-DTL-38999/1 (type I)
• Compliance options: MIL-STD 810G / MIL-STD 461E/F/G as configured
• OSD and 5 capacitive front keys (Power, Brightness+, Brightness-, OSD/Enter, ESC)
• Integrated ambient light sensor for auto-brightness; fanless metal enclosure for harsh environments

Certifications & Compliance

• Certifications: CE, FCC
• MIL-STD-461G profiles (CE101, CE102, RE101, RE102, CS118 default; additional CS/RS tests optional)
• MIL-STD-810H environmental tests (vibration, humidity, transit drop default; additional STANAG tests optional)
• TEMPEST options: NSA NSTISSAM TEMPEST/1-92 and NATO SDIP-27 (optional)

Accessories (supplied and optional)

• Supplied: user manual (hardcopy), MIL-DTL-38999/1 power cord, VGA cable, DVI cable, 2 × HDMI cables, 1 × DisplayPort cable
• Optional: audio cable; USB touch cable; RS232 cable for remote control (depending on configuration)

Technical specifications

• Display size: 27.0 inches
• Resolution: 3840 × 2160
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• Viewing angles: 89 / 89 / 89 / 89
• Display color: 1.07B colors
• Active area: 596.16 × 335.34 mm
• Touch: PCAP multi-touch (standard); PCAP with ITO film (optional)
• IO: 1 × VGA; 1 × DVI; 1 × DisplayPort 1.2 (default); 2 × HDMI 2.0 (optional); USB for touch (optional); RS232 (optional)
• Audio: Audio Line In (optional)
• Dimensions (W × H × D): 697.2 × 442 × 73.8 mm
• Weight: 15.9 kg
• Mounting: VESA mount and rack mount (8U)
• Enclosure: metal; Cooling: fanless design
• Power: AC 100–240 V ±10% (default); DC 9–36 V ±10% (optional)
• Operating temperature: 0 ~ 50°C; Storage temperature: -10 ~ 60°C
• Operating humidity: 10% to 95% RH
