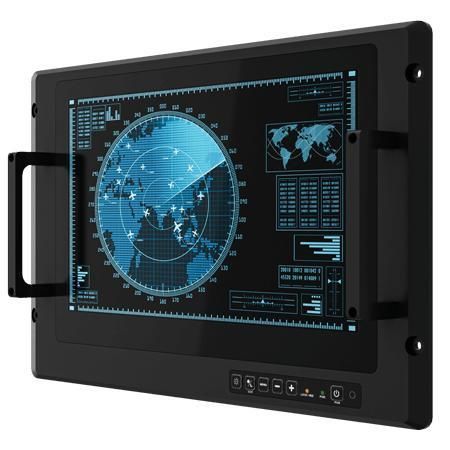

TFT monitor W15L100-MLB3FP

multitouch screenprojected capacitive touchscreenPCAP touchscreen

Product Overview
W15L100-MLB3FP is a 15.6 inches 4K2K UHD rack-mount defence display with a projected capacitive (PCAP) multi-touch option. Designed for mission-critical command and control environments, the unit features an 8U rackable mechanical design, VESA mount compatibility, defence-grade power/connectors and a fanless heavy-duty metal enclosure for reliable operation in harsh conditions.

Key Features

• 15.6" 4K2K UHD TFT panel (3840 x 2160)
• UHD PCAP rack-mount defence display with PCAP multi-touch (standard)
• Compliant with MIL-STD-810G/H and MIL-STD-461 series for environmental and EMC requirements
• Rack-mount mechanical design (8U) with VESA mounting support
• Defence-grade power connector (MIL-DTL-38999/1) and lockable MIL-type connectors
• AC 100–240V universal ±10% default; DC 9–36V ±10% optional
• Front panel OSD physical keys and built-in ambient light sensor for auto-brightness

Certifications

• CE
• FCC
• RoHS2
• REACH
• Optional TEMPEST: NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27

Compliance & Environmental Performance
Designed to meet MIL-STD-461G (EMC) and MIL-STD-810G/H (environmental/vibration/shock) test methods where specified. Environmental ranges cover operating humidity 10%–95% RH and operating temperature 0–50°C; storage temperature -10–60°C. Shock and vibration ratings (examples: 10G shock, 5–500 Hz 1G RMS random vibration) are available per configuration and test lists.

IO & Connectivity

• Video inputs: DisplayPort 1.2 (default), VGA, DVI; optional 2 x HDMI 2.0
• Touch interface: USB for touch (optional)
• Control: RS232 for remote control (optional)
• Audio: Audio Line In (optional)

Accessories

• Standard: user manual (hardcopy), power cord (MIL-DTL-38999/1), VGA cable, DVI cable, 2 x HDMI cables, 1 x DP cable
• Optional: audio cable and other configuration-specific accessories

Technical Specifications

• Model: W15L100-MLB3FP
• Brand: Winmate
• Display size: 15.6 inches
• Resolution: 3840 x 2160 (4K2K UHD)
• Touch / Glass: Projected Capacitive Multi Touch (standard); PCAP with ITO film optional; resistive or IR options available
• Panel brightness: 500 nits
• Contrast ratio: 1400:1
• Display colors: ~1,073.7M colors
• Viewing angles (L/R/U/D): 89° / 89° / 89° / 89°
• Active area: 344.217 x 193.762 mm
• Dimensions (W x H x D): 457.6 x 287.7 x 68.8 mm
• Weight: 8.5 Kg
• Mounting: VESA mount / Rack mount (8U mechanical design)
• Enclosure: Metal heavy-duty steel construction (black front / dark grey rear)
• Cooling: Fanless design
• Power rating: AC 100~240V Universal ±10% (default); DC 9~36V ±10% (optional)
• Buttons / Controls: Power, +, -, Menu, Day/Night mode, LED brightness adjust; ambient light sensor
• Shock / Vibration: 10G acceleration (11 ms) shock; 5–500 Hz 1G RMS random vibration (per configuration)
• Compliance: MIL-STD-461G (default CE101/CE102/RE101/RE102/CS118; additional items optional), MIL-STD-810H (vibration, humidity, transit drop methods)
