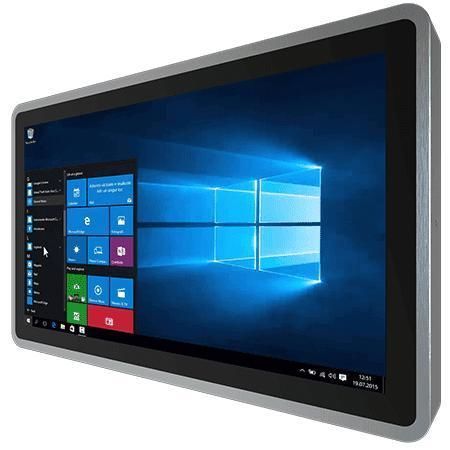

PCAP touchscreen panel PC W22IT3S-SPA3-R

multitouch screen21.5"11th Generation Intel® Core™

Product Overview
The W22IT3S-SPA3-R is a 21.5-inch IP65 stainless steel R-Series Panel PC powered by an 11th Generation Intel® Core™ i5-1135G7. It offers a SUS 316 / AISI 316 enclosure, true flat edge-to-edge front for easy cleaning, projected capacitive multi-touch with Glove and Rain modes, fanless cooling and multiple mounting options. Optional configurations include optical bonding, extended memory/storage and wireless modules.

Key Features

• 11th Gen Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Round corner design with true flat, edge-to-edge front
• IP65 sealed front and housing for washdown and dust protection
• Projected Capacitive Multi-Touch (P-CAP) with Glove / Rain modes
• SUS 316 / AISI 316 stainless steel suitable for food, beverage and chemical environments
• Various mounting solutions (panel, VESA, yoke, arm)
• Optional optical bonding, WLAN and Bluetooth modules

Certifications

• IP65
• FCC
• CE

Highlights / Applications

• Stylish and still rugged
  Rounded corners and a covered chassis enable hygienic, aesthetic installations while preserving durability in industrial environments.
• Waterproof all-around
  IP65 protection supports regular cleaning and strict hygiene procedures in Food & Beverage, Pharmaceutical and related industries.
• Comprehensive stainless solution
  Designed for automation tasks where corrosion resistance and cleanability are essential.
• Responsive multi-touch
  High-sensitivity P-CAP supports multi-finger gestures for fast data entry and control in production environments.
• Flexible installation
  Supports panel mount, stand, VESA, yoke or arm installations to fit various machine and control-room layouts.

Notes

• All Universal Carrying System kits are not Winmate standard products.

Specifications

• Model
  W22IT3S-SPA3-R
• Display
  Size: 21.5-inch
  Touch / Glass: Projected Capacitive Multi-Touch Screen
  Resolution: 1920 x 1080
  Panel Brightness: 250 nits
  Contrast Ratio: 3000:1
  View Angles: 89/89/89/89
  Active Area: 476.64 x 268.11 mm
• System Specification
  Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
  Memory: 4GB (Default); 8GB / 16GB / 32GB (Optional)
  Storage: 128GB SSD (Default); 256GB / 512GB / 1TB / 2TB / 4TB (Optional); 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
  Ethernet controller: 2 x Intel® Ethernet Controller
  Security: TPM 2.0
  Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
  WLAN / BT: Support (Optional)
• Mechanical
  Dimension: 541 x 337 x 56.2 mm (without junction box); 541 x 337 x 153.2 mm (with junction box)
  Mounting: VESA mount (Default); Yoke mount (Optional); Arm mount (Optional)
  Enclosure: Stainless Housing (SUS 316 / AISI 316)
  Cooling System: Fanless Design
• Environment
  Operating Humidity: 10% to 90% RH, Non-Condensing
  Operating Temperature: 0°C to 45°C
  Storage Temperature: -20°C to 60°C
  IP rating: IP65
• Certification
  CE, FCC
• IO Ports
  USB Port: 1 x M12 Waterproof Connector for 2 x USB2.0
  Serial Port: 1 x M12 waterproof connector for RS232
  LAN: 1 x Waterproof Giga LAN RJ45 Connector
  Indicator: 1 x LED Indicator for power; 1 x LED Indicator for storage
• Control
  Button: 1 x Power Button; 1 x Reset Button
• Accessory
  100~240V AC to DC Adapter with waterproof connector
  Power Cord
  External USB cable with waterproof connector
  External COM cable with waterproof connector
  External LAN cable with waterproof connector
  Junction Box
  Waterproof caps
  Manual
  VESA screws
• Power
  Power Rating: 12V DC (M12 type)
