PCAP touchscreen panel PC W24IAD3S-SPA2-R

multi-touch screen24"Intel® Core i5-1235U

Overview

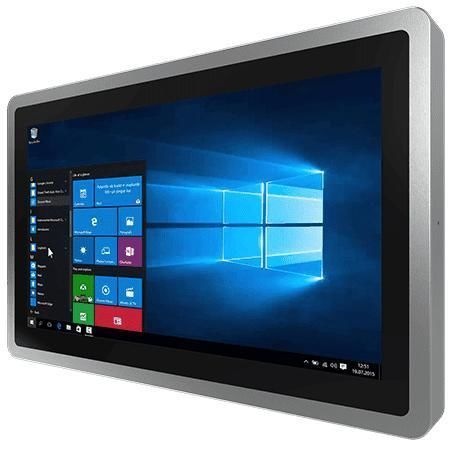

The W24IAD3S-SPA2-R is a 24.0 inches stainless steel IP65 Panel PC with a round-corner, true flat edge-to-edge front surface designed for hygienic and harsh environments. It integrates an Intel® Core™ i5-1235U processor, projected capacitive multi-touch (P-CAP), a sealed IP65 enclosure and a fanless stainless housing suitable for food, beverage and pharmaceutical applications.

Key Features

• 12th Gen Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Round-corner, true flat edge-to-edge front surface for easy cleaning
• Sealed IP65 enclosure for water and dust protection
• Projected capacitive multi-touch with glove and rain touch modes
• SUS 316 / AISI 316 stainless housing for food and chemical environments
• Fanless design for maintenance-free operation
• Multiple mounting options (VESA default; yoke and arm optional)
• Optional optical bonding

Certifications

• IP65
• FCC
• CE

Product Details
The unit provides versatile mounting solutions (VESA mount by default; optional yoke and arm mounts). The covered chassis supports rear or VESA brackets for secure installation. Projected capacitive multi-touch (P-CAP) ensures high touch sensitivity and multi-gesture input while supporting glove and rain modes. The fanless, SUS 316 stainless steel construction facilitates frequent cleaning and meets hygiene requirements for regulated production environments.

Technical specifications

• Display - Size: 24.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 527.04 x 296.46 mm
• System - Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• System - Memory: 8GB (default); 16GB / 32GB (optional)
• System - Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB (default); 512GB / 1TB / 2TB optional; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise (64 bit) (optional); Windows 11 Pro 64 bit (optional); Linux Ubuntu 22.04 (optional, does not support Wake on Touch)
• System - WLAN: Support (optional)
• System - Bluetooth: Support (optional)
• Mechanical - Dimension: 620 x 390 x 56 mm (with junction box); 620 x 390 x 153 mm (without junction box)
• Mechanical - Mounting: VESA mount (default); Yoke mount (optional); Arm mount (optional)
• Mechanical - Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Mechanical - Cooling System: Fanless Design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 45°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - IP rating: IP65
• Certification: CE, FCC
• IO Ports - USB Port: 1 x M12 waterproof connector for 2 x USB2.0
• IO Ports - Serial Port: 1 x M12 waterproof connector for RS232
• IO Ports - LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED indicator for power; 1 x LED indicator for storage
• Control - Button: 1 x Power Button; 1 x Reset Button
• Accessory: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; junction box; waterproof caps; manual; VESA screws
• Power - Power Rating: 12V DC (M12 type)
