PCAP touchscreen panel PC R15IT3S-SPC3-R

multi-touch screen15"11th Generation Intel® Core™

Overview

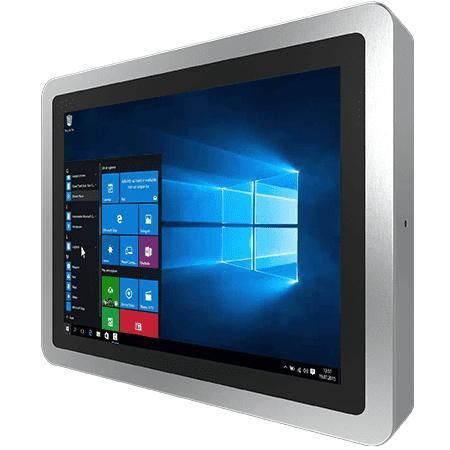

The R15IT3S-SPC3-R is a 15.0-inch IP65 R Series Panel PC powered by an 11th Generation Intel® Core™ i5-1135G7. It features a true flat, edge-to-edge front with round corners and a SUS316/AISI316 stainless steel enclosure for use in hygiene-sensitive environments. The sealed design and multiple mounting options support installation in food, beverage and pharmaceutical facilities. Projected capacitive (P-CAP) multi-touch supports multi-finger gestures plus glove and rain modes for wet or gloved operation.

Key features

• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
• 15.0-inch display, 1024 × 768, 300 nits, 2000:1 contrast
• Projected capacitive multi-touch (P-CAP) with glove/rain modes
• SUS316 / AISI 316 stainless steel housing; true flat edge-to-edge front; round-corner design
• Sealed to IP65 for protection against water and dust
• Fanless design and TPM 2.0 security support
• Mounting: VESA (default); optional yoke or arm mounts
• Optional optical bonding; optional WLAN/Bluetooth

Certifications

• IP65
• CE
• FCC

Technical specifications

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); optional 8GB / 16GB / 32GB
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB / 4TB; optional 1 × SATA III for 2.5" SSD/HDD up to 2TB
• Ethernet: 2 × Intel® Ethernet controllers
• Display: 15.0 inches, 1024 × 768, active area 304.1 × 228.1 mm, viewing angles 88/88/88/88
• IO: 1 × M12 waterproof connector for 2 × USB2.0; 1 × M12 waterproof for RS232; 1 × waterproof Giga LAN RJ45
• Indicators & controls: 1 × LED power; 1 × LED storage; power and reset buttons
• Dimensions: 378 × 301 × 56.4 mm (without junction box); 378 × 301 × 153.4 mm (with junction box)
• Operating: 0°C to 45°C; 10%–90% RH non-condensing
• Storage: -20°C to 60°C
• Power: 12V DC (M12 type); AC adapter 100–240V included
