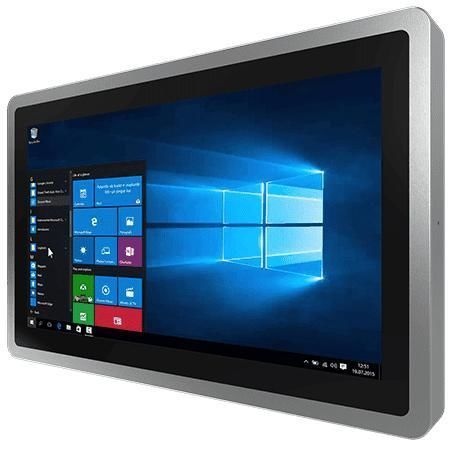

PCAP touchscreen panel PC W24IT3S-SPA2-Rmultitouch screenmulti-touch screentouch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- PCAP touchscreen, multitouch screen, multi-touch screen, touch screen
- Display size
- 24"
- Processor
- 11th Generation Intel® Core™, Intel® Core™ i5-1135G7
- Resolution
- 1920 x 1080
- Operating system
- Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
- Construction
- stainless steel frame
- Mounting
- VESA mounting, arm-mounted
- Applications
- industrial, for the food industry, for the pharmaceutical industry, for the chemical industry, for hygienic applications
- Protection level
- IP65
- Memory size
Min.: 4 GB
Max.: 32 GB
Description
Overview
Key features
Certifications
Notes
Technical specifications
- Industrial 24.0 inches stainless Panel PC designed for hygienic and harsh environments with round-corner housing and multiple mounting options (panel, stand, VESA).
- Sealed to IP65 for washdown cleaning and protection against dust and water in food, beverage, pharmaceutical and chemical facilities.
- Projected capacitive (P‑CAP) multi-touch supporting glove and rain modes for reliable input in production environments.
- SUS316 / AISI 316 stainless housing and fanless thermal design for corrosion-prone and sterile areas.
Key features
- Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
- 24.0 inches display, 1920 x 1080, 250 nits, 3000:1 contrast
- Round-corner true-flat front (edge-to-edge) for easy cleaning
- IP65 rating; glove/rain modes; optional optical bonding
- SUS316 / AISI 316 stainless steel enclosure
- Multiple mounting: VESA default; yoke or arm optional
- Fanless design
Certifications
- IP65
- FCC
- CE
Notes
- All Universal Carrying System kits are not Winmate standard products.
Technical specifications
- Model: W24IT3S-SPA2-R
- Display: Size: 24.0 inches; Touch / Glass: Projected Capacitive Multi Touch; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; Active Area: 527.04 x 296.46 mm
- System: Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz); Memory: 4GB default (optional 8GB/16GB/32GB); Storage: 128GB SSD default (optional 256GB/512GB/1TB/2TB/4TB); 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional); Security: TPM 2.0; OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
- Mechanical: Dimensions: 620 x 390 x 56 mm (with junction box) / 620 x 390 x 153 mm (without junction box); Mounting: VESA (default), Yoke (optional), Arm (optional); Enclosure: SUS316 / AISI 316 stainless steel
- Environment: Operating Humidity: 10% to 90% RH non-condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP65
- IO ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector; LED indicators for power and storage
- Control & Power: Buttons: 1 x Power; 1 x Reset; Power Rating: 12V DC (M12 type); Accessories: 100~240V AC-DC adapter with waterproof connector, power cord, external USB/COM/LAN cables with waterproof connectors, junction box, waterproof caps, manual, VESA screws
