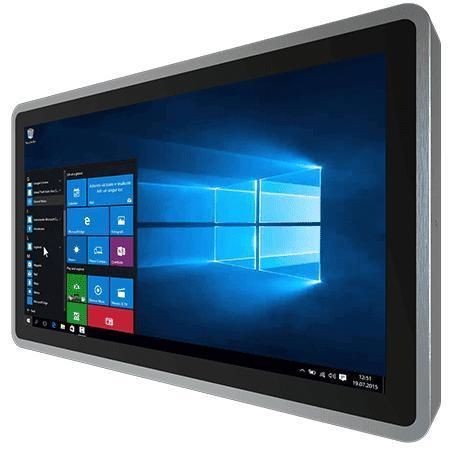

PCAP touchscreen panel PC W22IAD3S-SPA3-R

multitouch screentouch screen21.5"

Overview
The W22IAD3S-SPA3-R is a 21.5-inch industrial Panel PC designed for hygienic and harsh environments. It features a stainless steel housing, edge-to-edge true-flat front, projected capacitive multi-touch (P-CAP) and IP65 protection, enabling easy cleaning and reliable operation in food, beverage, pharmaceutical and chemical applications.

Key features

• Intel® Core™ i5-1235U (12th Gen) up to 4.40 GHz
• 21.5-inch display with 1920 x 1080 resolution
• Projected capacitive multi-touch (P-CAP) with Glove/Rain mode
• True-flat, easy-to-clean front surface with round-corner design
• IP65 front sealing and stainless steel enclosure (SUS 316 / AISI 316)
• Multiple mounting options (panel, VESA, yoke, arm)
• Optional optical bonding and optional WLAN/Bluetooth

Certifications

• IP65
• CE
• FCC

Technical specifications

• Display — Size: 21.5 inches; Touch/Glass: Projected Capacitive Multi Touch Screen (P-CAP); Resolution: 1920 x 1080; Brightness: 250 nits; Contrast Ratio: 3000:1; Viewing Angles: 89/89/89/89; Active Area: 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB (default); 16GB / 32GB (optional)
• Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB (default); optional 512GB / 1TB / 2TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional
• Mechanical — Dimensions: 541 x 337 x 56.2 mm (without junction box); 541 x 337 x 153.2 mm (with junction box)
• Mounting: VESA (default); Yoke mount (optional); Arm mount (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316); Cooling: Fanless design
• Environment — Operating humidity: 10% to 90% RH, non-condensing; Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C; IP rating: IP65
• IO Ports — USB: 1 x M12 waterproof connector for 2 x USB2.0; Serial: 1 x M12 waterproof connector for RS232; LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators & Controls — 1 x Power LED; 1 x Storage LED; 1 x Power button; 1 x Reset button
• Accessories (included/optional): 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; junction box; waterproof caps; manual; VESA screws
• Power — 12V DC (M12 type)
