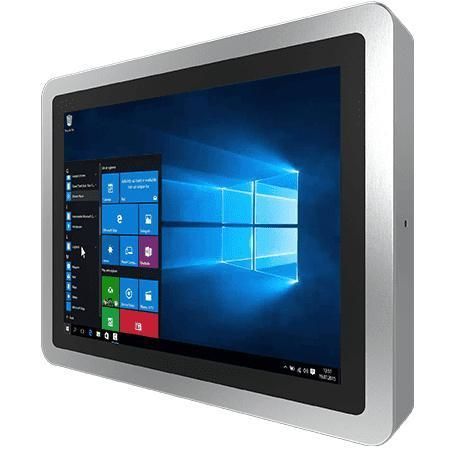

PCAP touchscreen panel PC R15IAD3S-SPC3-R

multitouch screen15"Intel® Core i5-1235U

Overview
The R15IAD3S-SPC3-R is a 15.0-inch IP65-rated stainless steel Panel PC designed for hygienic and harsh industrial environments. It features a true flat edge-to-edge P-CAP multi-touch display, round-corner frontal design, SUS 316 / AISI 316 housing and multiple mounting options for flexible installation.

Key Features

• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz, up to 4.40 GHz
• 15.0-inch Projected Capacitive (P-CAP) multi-touch, 1024 x 768, 300 nits
• IP65 sealed front for water and dust protection; supports Glove and Rain modes
• SUS 316 / AISI 316 stainless steel enclosure suitable for Food, Beverage and Chemical industries
• True flat, edge-to-edge front with round corner design for easy cleaning
• Various mounting solutions: VESA (default), Yoke and Arm (optional)
• Optional optical bonding; fanless design for improved reliability

Certifications

• IP65
• CE
• FCC

Applications
Suitable for Food & Beverage, Pharmaceutical, chemical factories and other industrial automation environments that require washdown capability and strict hygiene standards.

Technical specifications

• Model: R15IAD3S-SPC3-R
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8 GB (default); optional 16 GB, 32 GB
• Storage: 1 x M.2 2280 NVMe SSD 256 GB (default); optional 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5-inch SSD/HDD up to 2 TB (optional)
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1 contrast
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• IO: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof for RS232; 1 x waterproof Giga LAN RJ45
• Indicators / Buttons: LED power and storage indicators; Power and Reset buttons
• Mechanical: Dimensions 378 x 301 x 56.4 mm (without junction box); 378 x 301 x 153.4 mm (with junction box)
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling: Fanless design
• Environment: Operating 0°C to 45°C; Storage -20°C to 60°C; Humidity 10%–90% RH non-condensing; IP65
• Power: 12V DC (M12 type); Accessories include 100~240V AC-DC adapter with waterproof connector, waterproof external cables, junction box, waterproof caps
