Windows 10 IoT Enterprise tablet R08IW8M-RTU1ML

Linux8.4"8th generation Intel® Core™ i5

Product summary

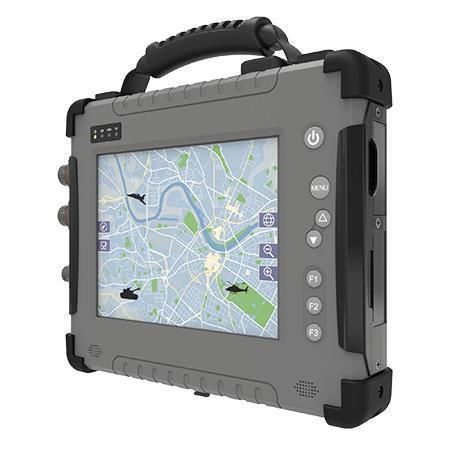

Winmate R08IW8M-RTU1ML is an 8.4-inch defence ultra-rugged tablet powered by 8th Gen Intel® Core™ i5-8265U (1.6 GHz, turbo up to 3.90 GHz). Built for field command, mission-critical mobility and defence integration, it provides a sunlight-readable transflective display, MIL‑STD‑38999 mil-spec connectivity, IP54 environmental protection, and long lifecycle availability for OEMs and system integrators.

Key features

• Intel® Core™ i5-8265U (1.6 GHz, turbo up to 3.90 GHz)
• 8.4" transflective TFT-LCD, 800 x 600 resolution, 600 nits with optical bonding
• Resistive touchscreen and user-programmable physical keys for gloved operation
• Aluminum-magnesium alloy housing with elastomeric rubber bumpers
• Adjustable kickstand that converts to an integrated handle
• MIL‑STD‑38999 connector for LAN/USB2.0, RS232/RS422 and DC power input
• Optional EMI/ITO mesh for MIL‑STD‑461F compliance

Overview — design & integration
R08IW8M-RTU1ML features an ultra-rugged enclosure designed for defence deployments. It meets MIL‑STD‑810 environmental qualifications (shock, vibration, drop), provides IP54-rated protection in standard configuration, and supports drop resistance up to 4 ft. MIL‑STD‑38999 connectors supply rugged, field-ready interfaces for easy integration with military systems and vehicle platforms.

Display & input
The 8.4" transflective panel (800 x 600) with 600 nits and optical bonding improves outdoor readability. The unit offers resistive touch input plus physical, user-defined buttons to ensure reliable operation with gloves or in adverse conditions.

Connectivity & positioning
Onboard wireless includes WLAN and Bluetooth; GNSS support is standard GPS with optional GLONASS, Galileo and BeiDou. Optional WWAN (4G/LTE or 3G) provides wide-area mobile communications. Typical GPS horizontal accuracy is ~2.5 m.

Certifications

• MIL‑STD‑810H (environmental test compliance)
• MIL‑STD‑461F (optional EMI/ITO mesh)
• CE, FCC, TELEC

Use cases
Intended for defence personnel, field command, vehicle- or vehicle-mounted deployments and mission-critical applications requiring rugged connectivity, EMI control and rapid integration with existing systems.

Technical specifications

• Model: R08IW8M-RTU1ML
• Processor: Intel® Core™ i5-8265U 1.6 GHz (up to 3.9 GHz)
• Display: 8.4" transflective TFT-LCD, 800 x 600, 600 nits, optical bonding
• Touch / Glass: Resistive Touch Screen; glove-compatible keys
• Memory: 4GB SODIMM DDR4-2400 (default); optional 8GB / 16GB
• Storage: 128GB M.2 SSD (default); optional 256GB / 512GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise 64-bit (default); Ubuntu 20.04 optional
• Wireless: WLAN, Bluetooth; WWAN 4G/LTE or 3G optional
• GNSS: GPS (default); GLONASS, Galileo, BeiDou optional
• Dimensions: 266 x 222 x 50 mm
• Weight: 2.4 kg
• Enclosure: Aluminum-magnesium alloy with protective rubber bumpers
• Cooling: Fanless design
• Battery: 11.1V, 5200mAh Li‑ion (6 cells); runtime ~8 hours
• Power input: 9–36V DC (MIL‑DTL‑38999/1 connector); adapter 100–240V 50/60Hz
• Operating temp: -20°C to 60°C (AC); -10°C to 50°C (battery)
• Storage temp: -30°C to 70°C
• Shock / Vibration / Drop: MIL‑STD‑810H compliance; drop resistance up to 4 ft
• IP rating: IP54
• I/O: 2 x USB 3.0; 1 x USB 2.0 (via MIL‑STD‑38999); 1 x RS232/RS422 (MIL‑STD‑38999); 1 x RJ45 10/100/1000 (MIL‑STD‑38999)
• Slots: Micro SD, Micro SIM
• Cameras: optional 2MP front, 5MP rear with autofocus
• Indicators: 4 x LED (Power, Battery, SSD, RF)
• Accessories (standard): adapter & power cord, battery, stylus, stand with integrated handle, external Power/RS232 and LAN/USB2.0 cables
• Optional accessories: kickstand, vehicle charger, battery charger, shoulder strap, carry bag, spare stylus
