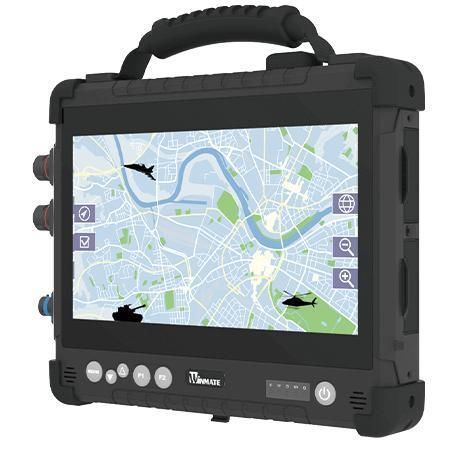

Windows 10 IoT Enterprise tablet R10IW8M-RTT2ML

Linux10.4"Intel® Core™ i5-8265U

Overview
The R10IW8M-RTT2ML is a 10.4-inch Defence Ultra Rugged Tablet built for mission-critical and defence field operations. Powered by an 8th Gen Intel Core i5-8265U, it combines a daylight-readable transflective display, MIL-STD-38999 external connectivity, environmental seals and a magnesium-aluminum alloy rear housing with elastomeric protection.

Key Features

• Intel Core i5-8265U (1.6 GHz, turbo up to 3.9 GHz)
• 10.4-inch transflective TFT-LCD, 1024 x 768, 700 nits with optical bonding
• Resistive touch for glove operation and physical user-defined buttons
• Ecological seals for moisture and dust protection; IP54 rating
• Adjustable kickstand convertible to a handle
• MIL-STD-38999 connector for LAN/USB2.0, RS232/RS422 and power

Ultra-Rugged Design & Integration
Engineered to operate in harsh environments, the device meets MIL-STD-810H requirements for shock, vibration and drop tests and can be configured for MIL-STD-461F EMI compliance via optional EMI/ITO mesh solutions. Robust connectors and perimeter elastomer provide reliable field integration and handling.

Display, Input & Outdoor Use
The transflective display with 700 nits and optical bonding ensures readability in direct sunlight. Input is via resistive touch (glove-capable) complemented by physical keys (power, menu, function keys, brightness) for secure operation in the field.

Wireless & Positioning
Standard WLAN and Bluetooth; optional WWAN (3G/4G/LTE). GNSS includes GPS by default with optional GLONASS, Galileo and BeiDou for improved positioning accuracy suited to command-and-control tasks.

Accessories & Expandability
Included and optional accessories support vehicle and desktop integration, extended battery operation and transport: adapter and power cord, standard and spare batteries, stylus, stand/handle, external power/RS232 and LAN/USB cables, vehicle charger, docking station and carry solutions.

Technical Specifications

• Processor: Intel Core i5-8265U (1.6 GHz, up to 3.9 GHz)
• Display: 10.4-inch transflective TFT-LCD, 1024 x 768, 700 nits
• Touch: Resistive touch screen
• Memory: 4 GB SODIMM DDR4-2400 (default); optional 8 GB / 16 GB
• Storage: 128 GB M.2 SSD (default); optional 256 GB / 512 GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) default; optional Linux Ubuntu 20.04
• Connectivity: WLAN, Bluetooth, optional WWAN; GNSS (GPS default)
• Interfaces: 2 x USB 3.0, 1 x USB 2.0 (via MIL-STD-38999), RS232/RS422, RJ45 LAN (via MIL-STD-38999)
• Battery: 11.1 V, 5200 mAh Li-Ion (6 cells), ~8 hours typical
• Dimensions / Weight: 266 x 222 x 50 mm / 2.4 kg
• Environmental: Operating -20°C to 60°C (AC), -10°C to 50°C (battery); storage -30°C to 70°C
• Compliance: IP54, MIL-STD-810H tests; optional MIL-STD-461F EMI, TEMPEST/SDIP27 options
