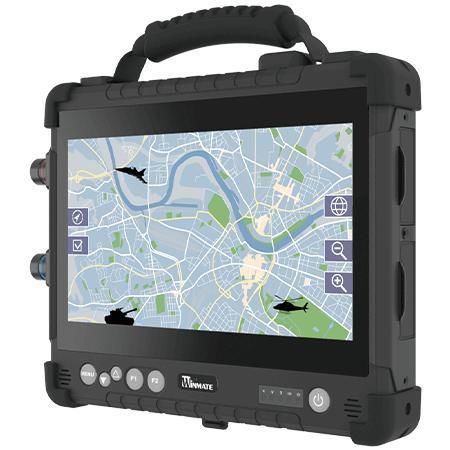

Linux tablet W10IWK8M-RTD1ML/NK-110.1"Intel® Core™ i5-8265U16 GB
Add to favorites
Compare this product
Characteristics
- Type
- Linux
- Display size
- 10.1"
- Processor
- Intel® Core™ i5-8265U
- Memory
- 16 GB
- Protection level
- ultra-rugged, shock resistant, IP65, MIL-STD-810G
- Connectivity
- GPS, GLONASS, BeiDou, GALILEO, Bluetooth, WiFi, 4G LTE, LAN
- Screen type
- capacitive touch screen, multitouch screen
- Data storage
- SSD 512GB
- Other characteristics
- fanless, RJ45
Description
Overview
Key Features
Certifications
Display
System Specification
Mechanical
Power
Environment
Control
I/O Ports
Technical specifications
- Winmate W10IWK8M-RTD1ML/NK-1 is a 10.1-inch ultra-rugged PC tablet built for defence, field command and mission-critical mobile operations. It provides rugged enclosure, field-ready I/O and long lifecycle support for industrial buyers, OEMs and system integrators.
Key Features
- 10.1" LED display, Full HD 1920 x 1080, 800 nits
- 8th Gen Intel® Core™ i5-8265U (1.6 GHz, turbo up to 3.9 GHz)
- Adjustable handle (convertible handle / kickstand) for portable field use
- Sealed ports and MIL-STD-38999 connector for LAN, serial and power
- Magnesium-alloy housing with elastomeric shock protection; fanless design
Certifications
- CE
- FCC
Display
- Size: 10.1 inch
- Touch / Glass: Multi-point capacitive touch
- Resolution: 1920 x 1080
- Panel Brightness: 800 nits
- Contrast Ratio: 800:1
- View Angles: 85°/85°/85°/85°
System Specification
- Processor: Intel Core i5-8265U 1.6 GHz (up to 3.9 GHz)
- Memory: 16 GB DDR4 SODIMM 2400 MHz
- Storage: 512 GB SSD
- Security: TPM 2.0
- Operating System: Linux Ubuntu 20.04
- WLAN / Bluetooth: supported
- WWAN: 4G/LTE or 3G (optional)
- GNSS: GPS (standard); GLONASS / Galileo / BeiDou (optional)
Mechanical
- Dimensions: 266 x 222 x 50.5 mm
- Enclosure: Magnesium alloy housing with elastomeric rubber surround
- Cooling: Fanless (no ventilation)
Power
- Battery: 11.1 V Li-ion, 5200 mAh (6-cell)
- Power Input: 24 V DC (MIL-STD-38999 connector)
- Adapter: 100-240 V, 50-60 Hz / 24 V DC
Environment
- Operating Humidity: 10% to 90% RH, non-condensing
- Operating Temperature: -20°C to 60°C (AC); -10°C to 50°C (battery)
- Storage Temperature: -30°C to 70°C
- Shock & Vibration: MIL-STD-810G (shock, vibration)
- Drop: MIL-STD-810G Method 516.6, 4 ft
- Ingress Protection: IP65 (dustproof, water-resistant)
Control
- Buttons: 1 x Power, 1 x Menu, 2 x Function keys, 2 x Brightness controls
- Indicators: 4 x LEDs for Power, Battery, SSD, RF status
I/O Ports
- USB: 2 x USB 3.0
- Serial: 1 x RS232/RS422/RS485 (via MIL-STD-38999)
- LAN: 2 x RJ45 10/100/1000 Mbps (via MIL-STD-38999)
- Video: 1 x HDMI
- Audio: 2 x 1 W speakers
Technical specifications
- Model: W10IWK8M-RTD1ML/NK-1
- Brand: Winmate
- Display: 10.1" FHD 1920 x 1080, 800 nits
- CPU: Intel Core i5-8265U (1.6 GHz, turbo up to 3.9 GHz)
- RAM: 16 GB DDR4 SODIMM
- Storage: 512 GB SSD
- TPM: 2.0
- OS: Linux Ubuntu 20.04
- Wireless: WLAN/BT standard; WWAN optional
- Battery: 11.1 V, 5200 mAh
- Power Input: 24 V DC (MIL-STD-38999)
- Dimensions: 266 x 222 x 50.5 mm
- Ruggedness: MIL-STD-810G, IP65
- I/O: 2x USB3.0, RS232/422/485, 2x Gigabit LAN, HDMI
- Certifications: CE, FCC
