Windows 10 IoT Enterprise tablet M133TGML(HB)

13.3"Intel® Core™ i5-1135G78 GB

Summary

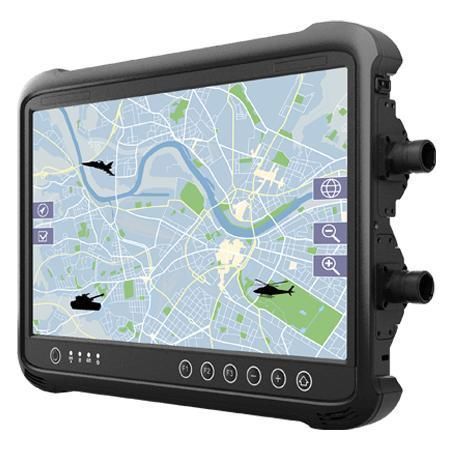

The Winmate M133TGML(HB) is a 13.3" defence ultra-rugged tablet engineered for field command, mission-critical mobility and harsh-environment deployments. It combines an Intel Core i5-1135G7 processor, ruggedized connectivity (MIL-STD-38999), IP65 protection and MIL-STD environmental qualifications to support secure, long-lifecycle defence applications.

Key Features

• 13.3" FHD (1920 x 1080) projected capacitive multi-touch display; 500 nits standard, 800 nits optional with optical bonding
• MIL-STD-38999 connector for LAN/USB2.0 and power/RS-232
• Glove / Rain / Stylus operation; active stylus supported
• Fanless, high-efficiency cooling for continuous operation
• MIL-STD-810 series compliance and IP65 rating
• Optional TEMPEST and NATO/STANAG configurations

Overview

• Purpose-built for defence: magnesium-alloy enclosure, drop- and vibration-tested, resistant to dust, water and extreme temperatures; drop protection up to ~1.2 m (4 ft)
• Performance: Intel Tiger Lake platform with Intel Core i5-1135G7 for multi-threaded field applications; supports Windows 10 IoT Enterprise 64-bit
• Rugged I/O: MIL-STD-38999 enables robust LAN, USB and serial interfaces plus DC power for vehicle and mission systems
• Visibility & operation: high-brightness, glove-capable touchscreen with configurable physical keys for tactical use

Display

• Type: Projected Capacitive Multi-Touch
• Size: 13.3 inches
• Resolution: 1920 x 1080
• Brightness: 500 nits (std); 800 nits (opt)
• Contrast: 1000:1
• Viewing angles: 89/89/89/89

System Specification

• CPU: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4GB DDR4 (std); optional 8/16/32 GB
• Storage: 128GB M.2 SSD (std); up to 2TB M.2 optional; secondary M.2 slot optional
• Ethernet: RJ45 10/100/1000 (via MIL-STD-38999)
• Security: TPM 2.0; Kensington lock
• OS: Windows 10 IoT Enterprise 64-bit
• Wireless: WLAN, Bluetooth; WWAN 4G/LTE optional; GNSS (GPS, GLONASS)

Camera

• Rear camera: 8 MP with autofocus and LED light

Mechanical

• Dimensions: 338.2 x 239.8 x 47.3 mm
• Weight: 2.4 kg (without kickstand); 2.8 kg (with kickstand)
• Enclosure: rear magnesium-alloy die-casting
• Cooling: fanless design

IO Ports

• USB: 3 x USB 3.0 Type-A; 1 x USB 3.1 Type-C; 1 x USB 2.0 via MIL-STD-38999
• Serial: 1 x RS-232 via MIL-STD-38999
• LAN: 1 x RJ45 Gigabit via MIL-STD-38999
• Audio: 2 x 1W speakers; integrated digital mic with noise cancellation
• Storage slot: Micro SD
• Indicators: 4 LEDs (Power, Battery, SSD, RF)
• Docking connector available

Environment & Durability

• Operating humidity: 30%–80% RH (non-condensing)
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock & vibration: tested to MIL-STD-810H methods; optional NATO STANAG certifications
• Drop: MIL-STD-810H, 4 ft (~1.2 m)
• IP rating: IP65

Certification

• CE, FCC
• MIL-STD-810 series; MIL-STD-461G (EMC) where specified

Control & Security Function

• Buttons: Power, Menu, 2 x Volume, 3 x programmable function keys
• Security: TPM 2.0 and Kensington Lock support

Power

• Battery: 15.4V typ. 5900 mAh Li-Polymer (4S1P)
• Runtime: >10 hours (BAPCo TabletMark v3)
• Power rating: 24V DC (MIL-STD-38999/1)
• Adapter: 100–240V, 50–60Hz / 24V DC

Accessory

• Included: adapter & power cord, standard battery, stylus, stand with integrated handle, external Power/RS232 cable, external LAN/USB2.0 cable
• Optional: shoulder strap, battery charger, active pen

Technical Specifications

• Model: M133TGML(HB)
• Brand: Winmate
• Display: 13.3" FHD (1920x1080), 500 nits std / 800 nits opt
• Touch: P-CAP multi-touch (Glove / Rain / Stylus)
• CPU: Intel Core i5-1135G7
• Memory: 4GB std, up to 32GB optional
• Storage: 128GB M.2 SSD std, up to 2TB optional; secondary M.2 optional
• Rugged: IP65, MIL-STD-810 series, MIL-STD-461G (as specified)
• Dimensions / Weight: 338.2 x 239.8 x 47.3 mm; 2.4 kg (without kickstand)
• Certifications: CE, FCC, MIL-STD series
