Windows 10 IoT Enterprise tablet W10IW8M-RTD1ML

Linux10.1"Intel® Core™ i5-8265U

Overview

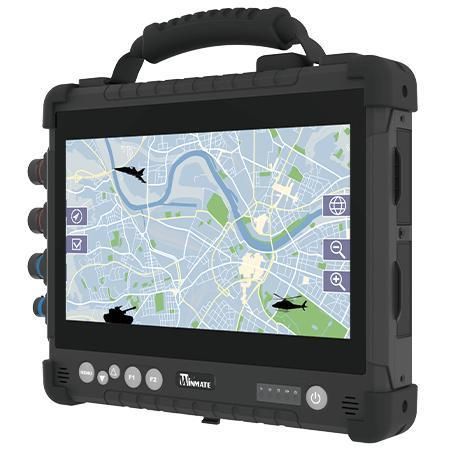

The Winmate W10IW8M-RTD1ML is a 10.1‑inch Defence Ultra Rugged Tablet powered by an 8th Gen Intel® Core™ i5-8265U (1.6 GHz, turbo up to 3.90 GHz). It is engineered for defence operations, field command and mission‑critical mobility with an ultra‑rugged magnesium alloy housing, all‑around elastomeric protection and sealed ports to resist dust and moisture.

Key features

• 10.1‑inch 1920 x 1080 LED display with direct optical bonding and 800 nits brightness for daylight readability
• Intel® Core™ i5-8265U processor (1.6 GHz, up to 3.90 GHz)
• Adjustable kickstand convertible to an integrated handle for handheld or mounted use
• Ecological seals and MIL‑STD‑38999 connector options for robust I/O and system integration
• Fanless design, magnesium alloy enclosure with elastomeric rubber, IP54 port sealing
• Onboard GPS (≈2.5 m horizontal accuracy), WLAN, Bluetooth, optional WWAN (4G/LTE or 3G)

Certifications

• MIL‑STD‑810G / MIL‑STD‑810H (environmental, shock, vibration and drop testing)
• MIL‑STD‑461F (EMI compliance option)
• CE, FCC

Product details

• Ultra‑rugged design for defence use: magnesium alloy housing with all‑around elastomeric rubber and IP54 front/ports sealed
• Sunlight‑readable projected capacitive multi‑touch with glove support and user‑defined physical buttons
• Integrated MIL‑STD‑38999 connectivity for LAN/USB2.0, RS‑232/RS‑422 and DC power input to ease integration with military systems
• Security: TPM 2.0 and support for hardware authentication options
• Indicators and controls: power, battery, SSD and RF status LEDs; 1x Power, 1x Menu, 2x Function, 2x Brightness keys
• Accessories: standard adapter, power cord, battery, stylus, stand/handle, external Power/RS232 and LAN/USB cables; optional kickstand, vehicle charger, battery charger, shoulder strap, carry bag

Technical specifications

• Model: W10IW8M-RTD1ML; Brand: Winmate
• Display: Projected capacitive multi‑touch, 10.1‑inch, 1920 x 1080, 800 nits, contrast 800:1, view angles 85/85/85/85
• Processor: Intel® Core™ i5-8265U (1.6 GHz, up to 3.9 GHz)
• Memory: 4GB SODIMM DDR4‑2400 (default); optional 8GB / 16GB
• Storage: 128GB M.2 SSD (default); optional 256GB / 512GB
• OS: Windows 10 IoT Enterprise (64‑bit) default; Ubuntu 20.04 optional
• Battery: 11.1V 5200mAh (6 cells), ~8 hours; power input 9‑36V DC (MIL‑DTL‑38999/1 connector)
• Dimensions / Weight: 266 x 222 x 50.5 mm / 2.4 kg
• Environmental: Operating −20°C to 60°C (AC), −10°C to 50°C (battery); storage −30°C to 70°C; humidity 10%–90% RH non‑condensing
• Mechanical tests: MIL‑STD‑810H shock/vibration/drop; optional NATO STANAG methods
• IP rating: IP54; TEMPEST, MIL‑STD‑461F available as options
• I/O: 2x USB 3.0, 1x HDMI, 1x RS232/RS422/485 + 1x RS422 (MIL‑STD‑38999), 2x RJ45 10/100/1000 (MIL‑STD‑38999)
• Audio: 2 x 1W speakers; Indicators: 4x LED (Power, Battery, SSD, RF)
