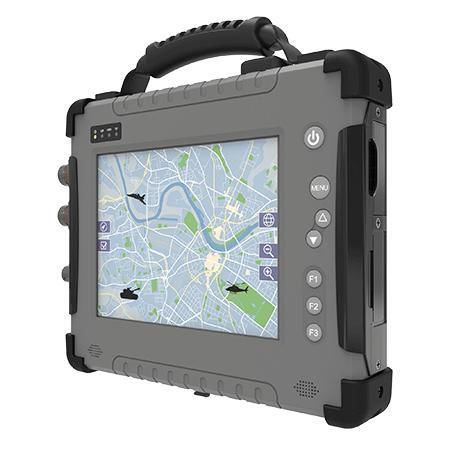

Windows 10 IoT Enterprise tablet R08IP8M-RTU1ML

8.4"Intel® Pentium® N42008 GB

Overview
The Winmate R08IP8M-RTU1ML is an 8.4" Defence ultra-rugged tablet powered by an Intel® Pentium® N4200. Engineered for defence, field command and mission-critical mobility, it combines a sunlight-readable transflective display, magnesium-alloy housing with elastomeric protection and MIL-grade connectors to support system integration in harsh environments.

Key Features

• Intel® Pentium® N4200 (Apollo Lake) processor
• 8.4" transflective TFT‑LCD, 800 x 600 resolution, 600 nits with optical bonding
• Resistive touch screen with glove operation and physical keys
• Magnesium alloy enclosure with full elastomeric bumper
• MIL‑STD‑38999 connector for LAN/USB2.0, RS232/RS422 and DC input
• Environmental seals protecting ports from moisture and dust

Product Highlights

• Designed for defence operations, field command and mission-critical mobility
• Passed MIL‑STD‑810 shock, vibration and drop tests; optional MIL‑STD‑461F EMI solution
• Sunlight-readable display (600 nits) with optical bonding for outdoor clarity
• Robust wired and wireless connectivity: GNSS (GPS default), WLAN, BT; optional WWAN (4G/LTE)
• Optional docking and vehicle kits for extended integration

Display

• Size: 8.4 inches
• Touch / Glass: Resistive Touch Screen
• Resolution: 800 x 600
• Panel Brightness: 600 nits (optical bonding)
• Contrast Ratio: 600:1
• View Angles: 75, 75, 60, 70

System Specification

• Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: SO‑DIMM 4GB DDR3L 1866 MHz (default); 8GB optional
• Storage: 64GB M.2 SSD (default); 128/256/512GB optional
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64‑bit)
• Wireless: WLAN and Bluetooth supported; WWAN optional
• GNSS: GPS default; GLONASS/Galileo/BeiDou optional

Mechanical

• Dimensions: 266 x 222 x 50 mm
• Weight: 2.4 kg
• Enclosure: Aluminum‑magnesium alloy with protective elastomer
• Cooling: Fanless design

Power

• Battery: 11.1V, 5200 mAh Li‑Ion (6 cells)
• Battery operating time: approx. 8 hours
• Power input: 9–36V DC (MIL‑DTL‑38999/1 connector)
• Adapter: 100–240V, 50–60Hz / 19V DC

Environment & Ruggedness

• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: -20°C to 60°C (AC); -10°C to 50°C (battery)
• Storage temperature: -30°C to 70°C
• Shock / Vibration / Drop: MIL‑STD‑810H tests; drop certified to 4 ft (1.2 m)
• IP rating: IP54

Control & I/O

• Buttons: Power, Menu, 3x Function keys, 2x Brightness keys
• USB: 2 x USB 3.0, 1 x USB 2.0 (via MIL‑STD‑38999)
• Serial: RS232/RS422 (via MIL‑STD‑38999)
• LAN: RJ45 10/100/1000 (via MIL‑STD‑38999)
• Audio: 2 x 1 W speakers
• SD / SIM: Micro SD slot, Micro SIM slot
• Indicators: 4 x LEDs (Power, Battery, SSD, RF)

Camera

• Front: 2 MP (optional)
• Rear: 5 MP with auto‑focus (optional)

Accessories (Standard & Optional)

• Standard: Adapter & power cord, standard battery, stylus, stand with integrated handle, Power/RS232 and LAN/USB2.0 external cables
• Optional: Adjustable kickstand, vehicle charger, battery charger, shoulder strap, carry bag, spare battery
• Representative accessories: MFD‑08 docking station, KS‑R10I8HM kickstand, RTB‑3 spare battery, VMDS‑08 vehicle mounting kit

Technical specifications

• Model: R08IP8M-RTU1ML
• Brand: Winmate
• Display: 8.4" resistive, 800 x 600, 600 nits
• CPU: Intel Pentium N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: 4GB DDR3L default (upgradable to 8GB)
• Storage: 64GB M.2 SSD default (upgradable)
• Battery: 11.1V 5200 mAh (~8 hours)
• Ruggedness: IP54, MIL‑STD‑810 (shock/vibration/drop), optional MIL‑STD‑461F
• Connectivity: WLAN, BT, optional WWAN, GNSS (GPS default)
• I/O: USB 3.0 x2, USB 2.0 x1 (MIL‑STD‑38999), RS232/RS422, RJ45 Gigabit
• Dimensions / Weight: 266 x 222 x 50 mm / 2.4 kg
• OS: Windows 10 IoT Enterprise 64‑bit
