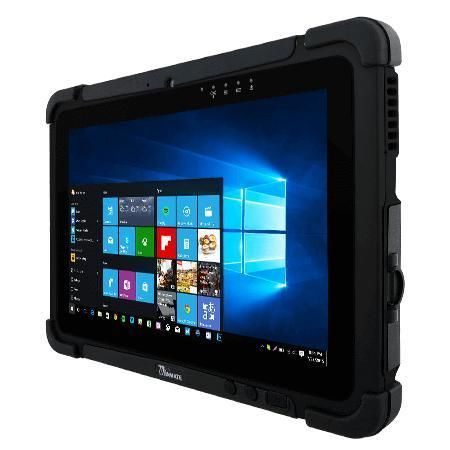

Tablet PC M101TG

Windows 10 IoT EnterpriseWindows 11 IoT Enterprise10.1"

Overview
Winmate M101TG is a 10.1in Windows rugged tablet designed for field service, inspection and industrial mobility. It pairs a 1920x1200 sunlight-readable IPS display with optical bonding, an Intel® Core™ i5-1135G7 processor, MIL-STD-810H and IP65 mechanical protection, hot-swappable battery capability and flexible I/O to support mission-critical workflows in harsh environments.

Key features

• 10.1in 1920 x 1200 IPS display with optical bonding and 800 nits brightness
• Intel® Core™ i5-1135G7 processor
• Rugged certifications: IP65, MIL-STD-810H; EMC options MIL-STD-461G
• Projected capacitive multi-touch (PCAP) with Rain, Glove and Stylus modes
• Hot-swappable battery design and typical runtime ~8 hours (standard battery)
• USB Type-C with Power Delivery 20V In; USB 3.0 Type-A; optional Micro HDMI

Certifications

• IP65
• MIL-STD-810H
• MIL-STD-461G (configuration dependent)
• CE
• FCC

Applications

• Field service and inspection
• Logistics and warehousing with optional 1D/2D barcode or HF RFID readers
• Utilities, transportation and public safety operations
• OEM and system integrator deployments requiring rugged Windows platforms

Accessories

• Included: AC adapter and power cord, standard battery (BWK101), capacitive stylus (DS-M101)
• Optional: high-capacity battery (BXL101), desk dock (DD-M101S), vehicle dock/cradle (VD-M101S / VC-M101S), vehicle charger, battery charger (BC-M101-2T), hand strap, shoulder strap, carry bag, metal vehicle docking, stand with integrated handle

Technical specifications

• Display: 10.1in, 1920 x 1200, Projected Capacitive Multi-Touch, 800 nits, optical bonding, anti-glare
• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory & Storage: 8 GB DDR (default), optional 16/32 GB; 128 GB SSD (default), optional 256/512 GB/1 TB/2 TB; micro SDXC slot
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Imaging & Data Capture: 8 MP rear camera with autofocus and LED, 2 MP front camera; optional 1D/2D barcode reader and HF RFID 13.56 MHz
• Connectivity: WLAN, Bluetooth, optional WWAN 4G/5G; GNSS (GPS, GLONASS); Micro SIM slot
• I/O: 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C (PD 20V In), 1 x Micro HDMI (optional), 1 x 3.5mm audio combo jack, Micro SDXC slot, 19-pin docking connector
• Environment: Operating temp -20°C to 60°C; humidity 10%–90% RH non-condensing; storage -30°C to 70°C
• Ruggedness: MIL-STD-810H shock/vibration/drop; IP65 ingress protection; MIL-STD-461G EMC options
• Power: Hot-swappable 11.55V (typ. 4558 mAh) standard battery; optional 15.4V high-capacity battery; adapter 100–240V, 50–60Hz / 19V DC
