Windows 10 IoT Enterprise tablet M116TG

Windows 11 IoT Enterprise11.6"11th Generation Intel® Core™

Overview

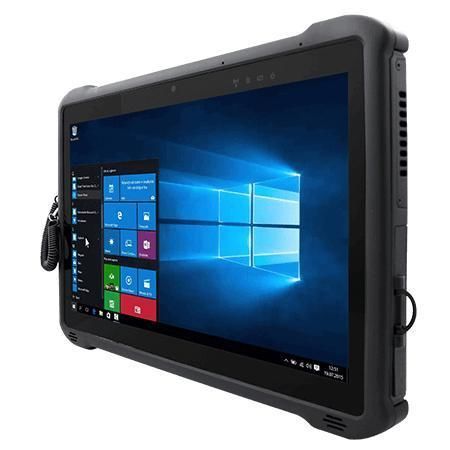

The Winmate M116TG is an 11.6" Windows rugged tablet engineered for field service, inspection and industrial/mobile deployments. It integrates an Intel® Core™ i5-1135G7 CPU, a sunlight-readable FHD display, hot-swappable battery architecture and MIL/IP certifications for use in demanding environments.

Key Features

• 11.6" FHD (1920 x 1080) IPS display, 850 nits, direct optical bonding
• Intel® Core™ i5-1135G7 (Tiger Lake)
• IP65 (front/full enclosure options) and MIL-STD-810H shock, vibration and drop resistance
• Sunlight-readable with anti-glare treatment
• Hot-swappable dual-battery architecture
• USB Type-C supporting Power Delivery 20V In

Product Details
Durable waterproof tablet PC
Designed to IP65 and certified to MIL-STD-810H for shock, vibration and drop tests; suitable for industrial, field and defence applications.

Multi-touch touch screen
10-point projected capacitive (PCAP) touchscreen supporting Hand/Rain, Stylus and Glove modes for intuitive input in varied conditions.

Sunlight readable wide-angle panel
11.6" IPS panel with 850 nits, anti-glare treatment and optical bonding for improved outdoor viewability and wide viewing angles.

Intel quad-core CPU designed for tablets
Intel Tiger Lake architecture balances performance and power for Windows IoT Enterprise and industrial workloads.

Multiple data collection & connectivity

• WLAN, Bluetooth, optional WWAN (4G/5G)
• GNSS: GPS, GLONASS
• Front 2MP and rear 8MP cameras (AF + LED)
• Optional 1D/2D barcode reader and HF RFID (13.56 MHz)

Certifications

• IP65
• MIL-STD-810H (shock, vibration, drop)
• MIL-STD-461G (EMC, optional configurations)
• CE, FCC

Technical specifications

• Model: M116TG
• Manufacturer: Winmate
• Display: 11.6" FHD (1920 x 1080), IPS, 850 nits, optical bonding, anti-glare
• Touch: Projected Capacitive 10-point (Hand/Rain, Stylus, Glove)
• CPU: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 8 GB default (options: 16 GB / 32 GB)
• Storage: 128 GB SSD default; options to 2 TB; micro SDXC slot
• Camera: Front 2MP; Rear 8MP AF with LED
• I/O: USB 3.0 Type-A, USB 3.0 Type-C (PD 20V In), optional RJ45, optional Micro HDMI, 3.5mm audio, Micro SDXC, Micro SIM, 19-pin docking connector
• Battery: Hot-swappable 11.55V typ. 4558 mAh Li-Polymer; Standard runtime ≈ 8 hours
• Dimensions / Weight: 300.67 x 201.97 x 22.5 mm; approx. 1.5 kg (with standard battery)
• Environment: Operating -20°C to 60°C; Humidity 10%–90% RH non-condensing
• Compliance: CE, FCC, MIL-STD-810H, MIL-STD-461G (options)
• Accessories: Adapter, capacitive stylus, standard battery; optional desk/vehicle docks, vehicle cradle, high-capacity battery, detachable keyboard, straps, carry bag, battery charger
