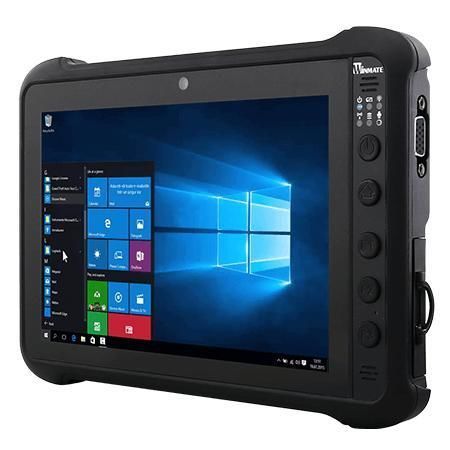

Windows 10 IoT Enterprise tablet M900P

8"Intel® Pentium® N42004 GB

Summary
The Winmate M900P is an 8-inch Windows rugged tablet for warehouse logistics, fleet management and in-vehicle operations. It combines a compact mobile form factor with industrial-grade durability and vehicle integration options for mission-critical field applications.

Key Features

• Intel® Pentium® N4200 (Apollo Lake)
• 8.0" 1280 x 800 IPS LED with direct optical bonding, 800 nits
• Projected Capacitive (P-Cap) multi-touch (rain/stylus/glove modes)
• Default 15-pin D-sub expansion for vehicle gateway/vehicle integration
• USB 3.0 Type-A and USB 3.0 Type-C ports
• IP65 front sealing and MIL-STD-810G certified

Overview & Highlights
The M900P delivers lightweight mobility (~0.9 kg) and fanless operation for reliable performance in harsh environments. Design highlights include MIL-STD-810G shock, drop and vibration resistance, optical bonding for sunlight readability, TPM 2.0 security, and optional vehicle cradle and Vehicle Gateway (VG100) for in-vehicle data integration and E‑Mark certified solutions.

Accessories (selected)

• Standard: Adapter & Power Cord (EA10733P), Standard Battery BS900 (98KA00000002)
• Optional: Desk Dock (DD-M900 98DA00000001), Vehicle Dock (VD-M900 98DT00A00026), Battery Charger (BC-M900 98JA00000001), Hand Strap (HSR-M900 / HS-M900), Vehicle Cradle (VC-M900 / VCC-M900), Vehicle Gateway (VG100), Capacitive Stylus (DS-M101)

Compliance & Certifications
CE, FCC, E‑Mark, MIL-STD-810G, IP65; supports TPM 2.0 and SOTI MobiControl for device management.

Technical specifications

• Model: M900P
• Display: 8.0" IPS, 1280 x 800, 800 nits, 1500:1, Optical Bonding, P-Cap multi-touch
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB (default); 8 GB (optional)
• Storage: 128 GB SSD (default); optional 256/512 GB SSD; Micro SDXC slot
• Smart Card Reader: optional (ISO7816 T=0/T=1)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64 bit)
• Wireless: WLAN, Bluetooth; WWAN 4G LTE optional
• GNSS: GPS, GLONASS
• RFID / Barcode: HF 13.56 MHz or LF 125 KHz optional (mutually exclusive with barcode reader); optional 1D/2D scanner
• Sensors: Light sensor, G-sensor, Gyro
• Cameras: Front 2 MP; Rear 8 MP AF with LED
• Dimensions: 225 x 148 x 20.5 mm
• Weight: ~0.9 kg (with battery)
• Cooling: Fanless
• Ports: 1x USB 3.0 Type-A, 1x USB 3.0 Type-C, 1x 3.5 mm audio combo, Micro SDXC, Micro SIM
• Expansion: 15-pin D-sub (Power, USB 2.0, Audio Out, Tx/Rx), 19-pin docking connector
• Indicators: 4 x LEDs (Power, Battery, HDD, RF)
• Buttons: Power, Menu, 3 programmable keys
• Battery: 7.6V typ. 4200 mAh Li-Polymer (2S2P); typical runtime ~8 hours
• Power: 19V DC (adapter 100-240V 50-60Hz)
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: -20°C to 60°C; Storage: -30°C to 70°C
• Shock/Vibration/Drop: MIL-STD-810G methods (shock, vibration), drop 5 ft
• IP Rating: IP65
• Certifications: CE, FCC, E‑Mark, TELEC, others
• Device management: SOTI MobiControl compliance
