Windows 10 IoT Enterprise tablet M900EKN

Windows 11 IoT Enterprise8"Intel® Pentium® N6415

Overview

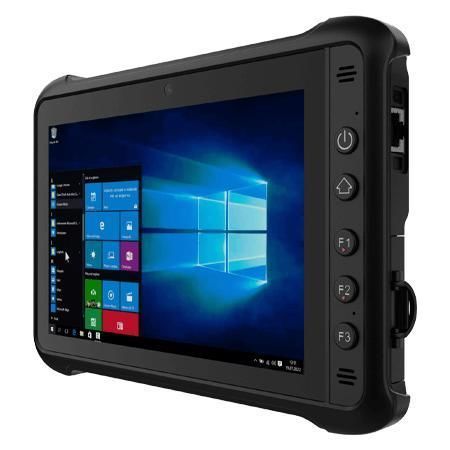

The Winmate M900EKN is an 8-inch Windows rugged tablet engineered for field service, inspection and industrial mobility. It combines an 8" WXGA optical-bonded IPS display (800 nits), IP65 protection and a fanless design to support outdoor and vehicle-mounted deployments where reliable connectivity and long lifecycle availability are required.

Key Features

• Intel Celeron N6211 processor (optional Intel Pentium N6415)
• 8" 1280 x 800 IPS display with direct optical bonding and 800 nits brightness
• Projected Capacitive (PCAP) multi-touch with anti-glare treatment
• Integrated RJ45 Gigabit LAN (10/100/1000), USB 3.0 Type-A and Type-C
• IP65 dust/water protection; MIL-STD-810H shock, vibration and 5 ft drop
• Optional modules: barcode reader (1D/2D), HF/LF RFID, WWAN 4G LTE

Certifications

• CE
• FCC

Product Details

• Display
  • Size: 8.0 inches
  • Resolution: 1280 x 800 (WXGA)
  • Panel Brightness: 800 nits; optical bonding for sunlight readability
  • Touch: Projected Capacitive Multi-Touch (PCAP)
• System
  • Processor: Intel Celeron N6211 (1.2 GHz, turbo up to 2.6 GHz) default; Intel Pentium N6415 optional
  • Memory: 4 GB default, up to 8 GB optional
  • Storage: 128 GB SSD default; microSDXC slot; 256/512 GB SSD optional
  • Security: TPM 2.0; optional ISO7816 smart card reader
  • OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Camera & Sensors
  • Front: 2 MP
  • Rear: 8 MP with autofocus and LED light
  • Sensors: ambient light, G-sensor, gyroscope
• I/O & Connectivity
  • 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C
  • 1 x RJ45 10/100/1000 GigaLAN
  • Micro SDXC slot, Micro SIM slot, audio combo jack
  • Wi‑Fi, Bluetooth; optional WWAN 4G LTE; GNSS (GPS/GLONASS)
• Power & Battery
  • Battery: 7.6 V typ. 4200 mAh Li‑Polymer (2S2P)
  • Typical runtime: ~6 hours (standard battery, dependent on configuration)
  • Power: 19 V DC; adapter 100–240 V, 50–60 Hz

Environment & Ruggedness

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Operating humidity: 10%–90% RH, non‑condensing
• Shock & vibration: MIL‑STD‑810H (516.8 / 514.8); Drop: 5 ft
• IP rating: IP65

Accessories

• Standard: adapter and power cord, standard battery pack
• Optional: desk dock, vehicle dock/cradle, vehicle charger, battery charger, hand strap, capacitive stylus, barcode/RFID modules, LAN and USB cables

Technical Specifications

• Model: M900EKN
• Display: 8.0" IPS, 1280x800, 800 nits, optical bonding
• Processor: Intel Celeron N6211 (default); Intel Pentium N6415 (optional)
• Memory/Storage: 4 GB / 128 GB SSD default; expandable
• Ruggedness: IP65, MIL‑STD‑810H
• Certifications: CE, FCC
