Windows 10 IoT Enterprise tablet M900PT

8"Intel® Pentium® N42008 GB

Overview

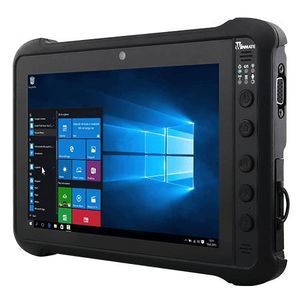

The Winmate M900PT is an 8-inch Windows industrial rugged tablet designed for warehouse logistics, fleet management and vehicle-mounted operations. It targets embedded and mission-critical environments requiring stable hardware integration, reliable field performance and long lifecycle availability. Key hardware elements include an Intel® Pentium® N4200 processor, sunlight-readable 8-inch display with optical bonding, built-in smart card reader, IP65 front protection and MIL-STD-810G compliance.

Key features

• Intel® Pentium® N4200 (Apollo Lake) processor — Windows platform
• 8-inch daylight-readable panel with direct optical bonding; PCAP multi-touch supporting rain/stylus/glove modes
• Default 15-pin D-sub connector for vehicle gateway and vehicle integration

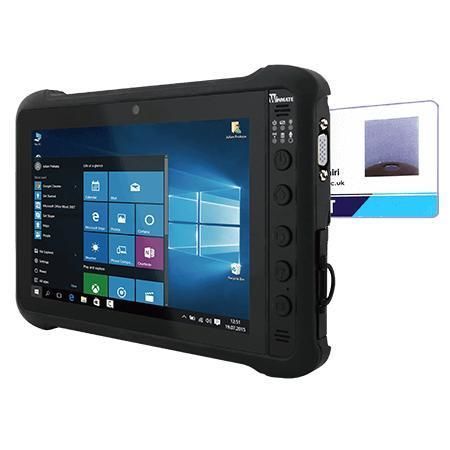

• Built-in Smart Card Reader (ISO7816 compliant)
• Optional 1D/2D barcode scanner

Highlights
The M900PT offers a compact, lightweight form factor (approx. 0.9 kg with battery), a high-brightness 800 nits sunlight-viewable display with PCAP multi-touch, fanless operation and wide operating temperature range. The device is certified to MIL-STD-810G for shock and vibration and provides IP65 front ingress protection for demanding industrial and in-vehicle use.

Certifications & Compliance

• MIL-STD-810G (shock, vibration, drop)
• IP65 rated (front)
• CE
• FCC
• E-Mark

Accessories (selected)
Standard accessories

• Adapter and power cord
• Standard battery pack (BS900, 7.6V / 4200 mAh)

Optional accessories

• Desk Dock (DD-M900)
• Vehicle Dock / Vehicle Cradle (VD-M900, VC-M900, VCC-M900)
• Vehicle Gateway (VG100)
• Battery Charger (BC-M900)
• Vehicle Charger (VCG-M101)
• Hand Strap (HS-M900)
• Capacitive Stylus (DS-M101)
• Optional Barcode Scanner (1D/2D)

Technical specifications

• Model: M900PT
• Brand: Winmate
• Display: 8.0 inches, Projected Capacitive Multi-Touch, Resolution 1280 x 800, Brightness 800 nits, Contrast Ratio 1500:1, View Angles 80/80/80/80, Optical bonding for sunlight viewability
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB (default), 8 GB (optional)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB SSD; micro SDXC slot
• Operating System: Windows 10 IoT Enterprise (64-bit)
• Smart Card Reader: Built-in (ISO7816)
• Security: TPM 2.0; SOTI MobiControl compatibility
• Wireless: WLAN supported, Bluetooth supported, WWAN 4G LTE optional
• GNSS: GPS, GLONASS
• Sensors: Light sensor, G-sensor, Gyro
• Cameras: Front 2 MP; Rear 8 MP with autofocus and LED
• USB: 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C
• Audio: 1 x 3.5 mm audio combo jack; dual digital microphones with noise cancellation; dual speakers
• Slots: 1 x micro SDXC slot; 1 x micro SIM slot
• Expansion / Vehicle I/O: 1 x 15-pin D-sub connector (power input, USB 2.0, audio out, Tx/Rx)
• Docking connector: 1 x 19-pin docking connector
• Indicators: 4 x LED (Power, Battery, HDD, RF)
• Buttons: Power, Menu, 3 x programmable function keys
• Battery: 7.6 V typ., 4200 mAh Li-Polymer (2S2P); Typical battery operating time: approx. 8 hours
• Power Rating: 19 V DC; Adapter: 100-240 V, 50-60 Hz / 19 V DC
• Dimensions: 225 x 148 x 20.5 mm
• Weight: approx. 0.9 kg (with battery)
• Cooling: Fanless design
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: -20°C to 60°C; Storage temperature: -30°C to 70°C
• Shock/Vibration/Drop: MIL-STD-810G Methods (Shock, Vibration, Drop 5 ft)
• IP rating: IP65 (front)
• Certifications: CE, FCC, E-Mark
