Windows 10 IoT Enterprise tablet M900EK

Windows 11 IoT Enterprise8"Intel® Pentium® N6415

Overview

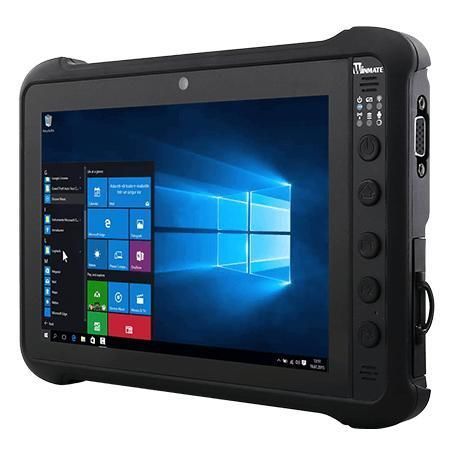

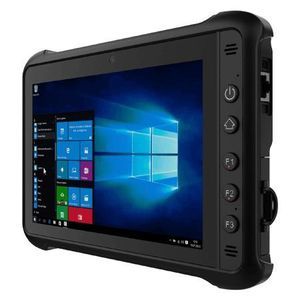

The Winmate M900EK is a rugged 8-inch Windows tablet engineered for field service, inspection and industrial mobility. Powered by Intel® Celeron® N6211 (Elkhart Lake) with optional Pentium N6415, it combines sunlight-readable direct optical bonded display, IP65 ingress protection and MIL-STD-810H mechanical resilience for mission-critical outdoor and onboard applications.

Key Features

• Intel® Celeron® N6211 (default), Intel® Pentium® N6415 optional
• 8.0" IPS 1280 × 800 with direct optical bonding, 800 nits
• Projected Capacitive (PCAP) multi-touch
• USB 3.0 Type-A and USB 3.0 Type-C
• Optional DB15 expansion port for industrial peripherals
• IP65 waterproof and dustproof; MIL-STD-810H compliant
• Fanless thermal design for wide temperature operation

Product Details
The M900EK uses optical bonding and anti-glare treatment to improve outdoor readability by reducing internal reflections and increasing perceived contrast. It provides versatile I/O (USB-A, USB-C, micro SDXC, micro SIM) and supports an optional DB15 expansion connector for integration with industrial peripherals. The device is built to sustain shock, vibration and drops per MIL-STD-810H and operates reliably across extended temperature ranges thanks to a fanless design.

Cameras & Imaging

• Front camera: 2 MP
• Rear camera: 8 MP with autofocus and LED light

Certifications

• CE
• FCC
• IC
• IP65 rating

Accessories (summary)
Standard accessories

• Adapter and power cord
• Standard battery pack (7.6V / 4200 mAh Li-Polymer, model BS900)

Optional accessories

• Desk dock
• Vehicle dock / cradle (with or without charger)
• Battery charger (dual-bay)
• Vehicle charger
• Hand strap(s), capacitive stylus
• USB-A cable, LAN cable and additional chargers/cradles

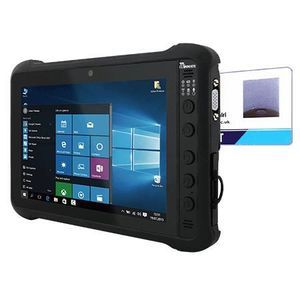

• 1D/2D barcode reader (optional)
• HF RFID (13.56 MHz) or LF RFID (125 KHz) reader (optional, mutually exclusive with barcode reader)

Technical specifications

• Model: M900EK
• Brand: Winmate
• Display: 8.0" IPS LED, 1280 × 800, 800 nits, direct optical bonding
• Touch: Projected Capacitive Multi Touch (PCAP)
• Processor: Intel® Celeron® N6211 1.2 GHz (turbo up to 2.60 GHz) default; Intel® Pentium® N6415 optional
• Memory: 4 GB (default); 8 GB optional
• Storage: 128 GB SSD default; optional 256 GB / 512 GB SSD; micro SDXC slot
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Wireless: WLAN, Bluetooth; WWAN 4G LTE optional
• GNSS: GPS, GLONASS
• RFID / Barcode: Optional HF RFID (13.56 MHz) or LF RFID (125 KHz) or 1D/2D barcode reader (mutually exclusive)
• Sensors: Ambient light, G-sensor, Gyro
• Cameras: Front 2 MP; Rear 8 MP AF + LED
• Dimensions: 225 × 148 × 20.5 mm
• Weight: ~0.9 kg with battery
• Battery: 7.6 V typ. 4200 mAh Li-Polymer, runtime ~6 hours (standard battery)
• USB: 1 × USB 3.0 Type-A, 1 × USB 3.0 Type-C
• Audio: 3.5 mm combo jack; dual digital microphones with noise cancellation; dual speakers
• Slots: 1 × Micro SDXC; 1 × Micro SIM
• Expansion: 1 × 15-pin D-sub (DB15) optional
• Docking: 1 × 19-pin docking connector
• Indicators & Controls: 4 × LEDs (Power, Battery, HDD, RF); 1 × Power, 1 × Menu, 3 × programmable keys
• Durability: IP65, MIL-STD-810H (shock, vibration, drop 5 ft)
• Operating temp: -20°C to 60°C; Storage temp: -30°C to 70°C
• Certifications: CE, FCC, IC
