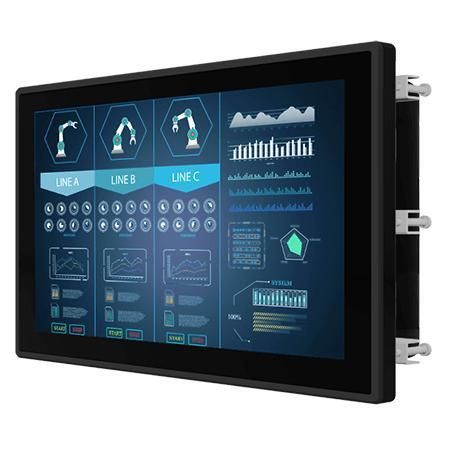

Multitouch screen monitor W22L100-EHA3

projected capacitive touchscreenfor industrial machinesfor HMI interface

Overview The Winmate W22L100-EHA3 is a 21.5-inch panel-mount multi-touch display for industrial visualization, control rooms and equipment monitoring. It features a projected capacitive (PCAP) multi-touch screen, Full HD 1920 x 1080 resolution, fanless thermal design and metal housing with aluminum bezel for reliable operation in industrial environments.

Key features

• 21.5 inches, 1920 x 1080 (Full HD)
• Projected Capacitive (PCAP) multi-touch
• VGA (standard); HDMI and DVI optional
• Panel-mount and VESA-mount support
• Front IP65 protection

Product highlights Low power consumption and efficient heat dissipation enable long-term operation in production facilities. Universal mounting options simplify installation in panel, wall or desk setups. Configurable modules and options include panel brightness, glass surface treatment and display ports to support OEM integration.

Certifications

• CE
• FCC

I/O and connectivity

• 1 x USB for touch
• 1 x VGA (standard)
• 1 x HDMI (optional)
• 1 x DVI (optional)
• Audio line-in (3.5 mm) optional; 2 x speakers optional

Accessories (included / optional)

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: remote controller (varies)

Environment & mechanical

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• IP rating: Front IP65
• Dimensions: 531 x 322 x 59 mm
• Weight: 6.4 kg
• Mounting: VESA mount / panel mount
• Enclosure: metal housing with aluminum bezel
• Cooling: fanless design

Technical specifications

• Model: W22L100-EHA3
• Display size: 21.5 inches
• Touch / glass: Projected Capacitive multi-touch; anti-glare coating optional
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89/89/89/89
• Display color: 16.7M colors
• Active area: 476.64 x 268.11 mm
• USB: 1 x USB for touch
• Video: 1 x VGA (standard); 1 x HDMI optional; 1 x DVI optional
• Audio: line-in 3.5 mm optional; 2 x speakers optional
• Dimensions: 531 x 322 x 59 mm
• Weight: 6.4 kg
• Power: 12V DC input (24V DC optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
