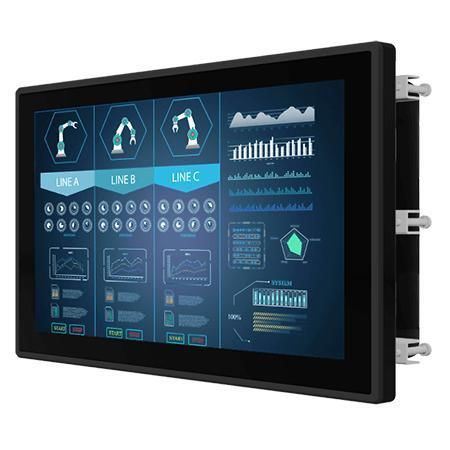

LCD monitor W24L100-EHA2

multitouch screenprojected capacitive touchscreenindustrial

Product overview
The W24L100-EHA2 is a 24" (23.8") multi-touch panel mount display engineered for industrial visualization, control rooms and equipment monitoring. It integrates a projected capacitive (PCAP) multi-touch panel with Full HD resolution and multiple video input options for OEMs and system integrators.

Key features

• 23.8" (24") display, 1920 x 1080 Full HD
• Projected Capacitive (PCAP) multi-touch
• VGA (standard); HDMI / DVI optional
• Panel mount and VESA mounting
• Front IP65 protection
• Fanless operation and metal housing with aluminum bezel
• Low power consumption, wide viewing angles and 16.7M colors
• Customization: panel size, brightness, glass treatment, I/O options

Certifications

• CE
• FCC

I/O and Audio

• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio (optional): line-in (3.5 mm); 2 x speakers (optional)

Accessories (included / optional)

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: remote controller (varies)

Mechanical / Environmental
Dimensions: 604 x 373 x 56 mm
Weight: 7.3 kg
Active area: 527.04 x 296.46 mm
Panel brightness: 250 nits
Contrast ratio: 3000:1
View angles: 89° / 89° / 89° / 89°
Display color: 16.7M colors
Operating humidity: 10% to 90% RH, non-condensing
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C
Front IP rating: IP65
Mounting: VESA mount / panel mount
Enclosure: metal housing with aluminum bezel
Cooling: fanless design

Power & Control
Power input: 12V DC (standard); 24V DC (optional)
Control: 5 keys (-, +, Power, Esc, Enter)

Technical specifications

• Model: W24L100-EHA2
• Size: 23.8 inches (24")
• Touch / Glass: Projected Capacitive multi-touch
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89/89/89/89
• Display color: 16.7M colors
• Active area: 527.04 x 296.46 mm
• Dimensions: 604 x 373 x 56 mm
• Weight: 7.3 kg
• Mounting: VESA / Panel mount
• IO: 1 x USB (touch); 1 x VGA (std); HDMI / DVI optional
• Audio: line-in 3.5 mm (optional); 2 x speakers (optional)
• Power: 12V DC (24V optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
