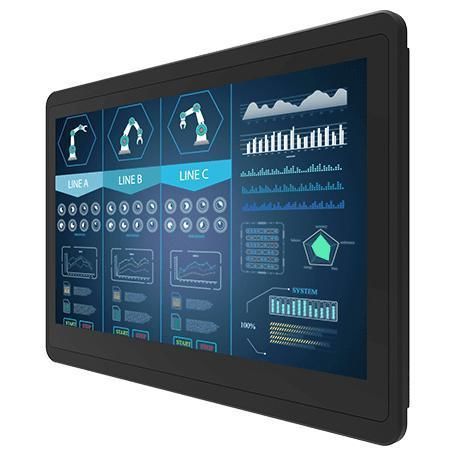

Multitouch screen monitor R15L100-EHC3

projected capacitive touchscreenfor industrial machinesfor HMI interface

Overview
Winmate R15L100-EHC3 is a 15-inch panel-mount multi-touch monitor engineered for industrial visualization, control rooms and equipment monitoring. It integrates a projected capacitive (P-Cap) multi-touch screen with native 1024 x 768 resolution, 300 nits brightness, fanless thermal design and front IP65 protection. True-flat front simplifies cleaning and maintenance; mounting clips allow panel installation without drilling.

Key features

• 15-inch display, 1024 x 768 resolution
• Projected Capacitive (P-Cap) multi-touch
• VGA input (default); HDMI and DVI optional
• Panel-mount (clips) and VESA mount options
• Front panel IP65 for dust and splash protection
• Fanless design for reliable long-term operation

Certifications

• CE
• FCC

Applications
Designed for HMI, industrial control systems, operator panels, kiosks and embedded systems where reliable continuous operation, easy cleaning and flexible mounting are required. Suitable for OEM integration and system integrators.

Technical specifications

• Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Anti-glare coating optional
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• IO: 1 x USB for touch (optional); 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); Audio line-in 3.5mm (optional); 2 x speakers (optional)
• Dimension: 367 x 291 x 65.8 mm
• Mounting: VESA (default); Panel mount (optional)
• Cooling: Fanless design
• Power: 12V DC in (standard); 24V DC in (optional)
• Control: 5 keys: -, +, Power, Esc, Enter

Accessories & options

• Included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller; alternative IO and power configurations
