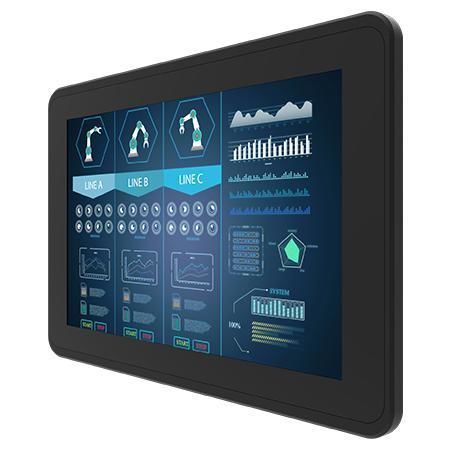

Multi-touch screen monitor W10L100-EHH2

projected capacitive touchscreenPCAP capacitive touch screen10.1"

Overview
The W10L100-EHH2 is a 10.1-inch panel-mount multi-touch display engineered for industrial visualization, control rooms and equipment monitoring. It features a fanless metal enclosure with aluminum bezel, front IP65 protection, flexible mounting (panel and VESA) and low power consumption for continuous operation.

Key features

• 10.1" display, resolution 1280 x 800
• Projected Capacitive (PCAP) multi-touch with USB interface
• Video: 1 x VGA (default); HDMI and DVI optional
• Front IP65 rating; metal housing with aluminum bezel; fanless design
• Panel brightness 350 nits (1000 nits optional)

Benefits

• Reliable industrial-grade design for 24/7 visualization and monitoring
• Multiple mounting options (panel mount / VESA) for flexible integration into machines, kiosks and control desks
• Low power and effective heat dissipation for long-term stable operation
• Wide customization options: display ports, brightness, glass treatment, enclosure and power input variants

Certifications

• CE
• FCC

Included accessories

• 1 x VGA cable
• 1 x HDMI cable
• 100–240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)

Optional accessories

• Remote controller (optional, varies by product)

Notes
Some features and components (HDMI/DVI, speakers, audio line-in, 24V input, higher brightness options) are configurable or optional depending on product configuration.

Technical specifications

• Display size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 800
• Panel Brightness: 350 nits (1000 nits optional)
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 16.7M colors
• Active Area: 216.96 x 135.6 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• IO Ports: 1 x USB (touch)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Mechanical Dimension: 267 x 182 x 56.5 mm
• Cut-out: 245 x 160 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
