LCD monitor W15L100-EHA4

multitouch screenLED backlightPCAP capacitive touch screen

Product Name

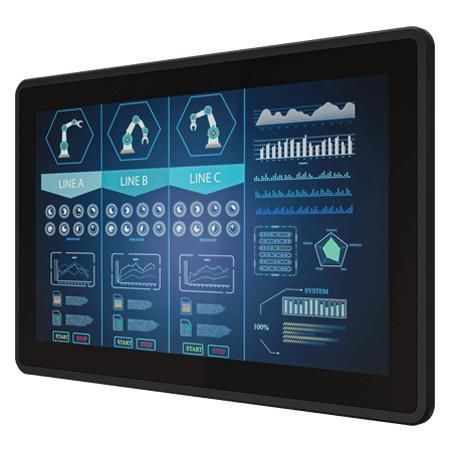

W15L100-EHA4 — 15.6-inch projected capacitive (PCAP) multi-touch panel-mount display

Overview
Winmate W15L100-EHA4 is a 15.6-inch Full HD (1920 x 1080) projected capacitive multi-touch display designed for panel installation in industrial visualization, control rooms and equipment monitoring. It provides touch capability, multiple video inputs and front IP65 protection for integration into demanding installations.

Key Features

• 15.6-inch 1920 x 1080 panel-mount multi-touch display
• Projected Capacitive (PCAP) multi-touch
• VGA input (default); HDMI and DVI optional
• Panel-mount and VESA-mount options
• Front IP65 protection

Product Highlights
Low power and fanless design
Engineered for low power consumption with effective heat dissipation and a fanless enclosure suitable for continuous operation in industrial environments.

Flexible mounting
Supports panel cut-out and VESA mounting to enable integration into control panels, operator consoles, kiosks or equipment racks.

Industrial-grade reliability
Metal housing with aluminum bezel and design options for different operating voltages and connector configurations to match industrial deployment requirements.

Display performance
Full HD resolution with LED backlight, 400 nits typical brightness, 800:1 contrast ratio and wide viewing angles for clear visualization and readable UIs.

Display ports & customization
Multiple I/O and customization options available, including different LCD brightness levels, glass surface treatments and optional optical bonding for improved sunlight readability.

Certifications

• CE
• FCC

Accessories & included items

• 1 x VGA cable
• 1 x HDMI cable
• 100~240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 15.6 inches
• Resolution: 1920 x 1080
• Panel brightness: 400 nits
• Contrast ratio: 800:1
• Viewing angles: 85° / 85° / 85° / 85°
• Display colors: 262K colors
• Active area: 344.16 x 193.59 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• USB: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) optional; 2 x speaker optional
• Dimensions: 388 x 260 x 62.5 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Optional accessory: Remote controller (varies by product)
