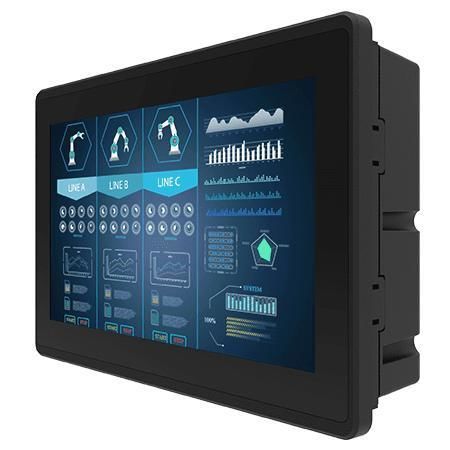

TFT-LCD monitor W07L100-EHT1

multitouch screenPCAP capacitive touch screenindustrial

Overview
W07L100-EHT1 is a 7" panel-mount multi-touch monitor for industrial visualization, control rooms and equipment monitoring. It provides stable hardware integration, fanless thermal design, low power consumption and front IP65 protection for continuous operation in industrial, OEM and system integrator applications.

Key features

• 7" TFT LCD, 1024 x 600 resolution
• Projected Capacitive (PCAP) multi-touch
• VGA input (standard); HDMI/DVI optional
• Panel mount and VESA mount support
• Fanless design with plastic bezel and metal back cover

Applications and benefits
Designed for HMI, industrial displays, kiosks and embedded OEM systems. The product offers reliable touch performance, clear image quality and multiple customization options (panel brightness, glass surface treatment, display ports, regional power plug).

Certifications

• CE
• FCC

Specifications

• Display size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 600
• Panel brightness: 320 nits
• Contrast ratio: 1000:1
• View angles: 75, 75, 75, 70
• Colors: 16.7M colors
• Active area: 153.6 x 90 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front IP rating: IP65
• I/O: 1 x USB (touch), 1 x VGA (std), 1 x HDMI (opt), 1 x DVI (opt)
• Audio: audio line in (3.5mm) optional; 2 x speaker optional
• Mechanical: 185 x 128 x 56 mm; cut-out 118 x 175 mm
• Mounting: VESA / panel mount
• Enclosure: plastic bezel & metal back cover
• Cooling: fanless design
• Power: 12V DC in
• Controls: 5 keys (-, +, Power, Esc, Enter)

Accessories

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: remote controller, speakers, regional power plug
