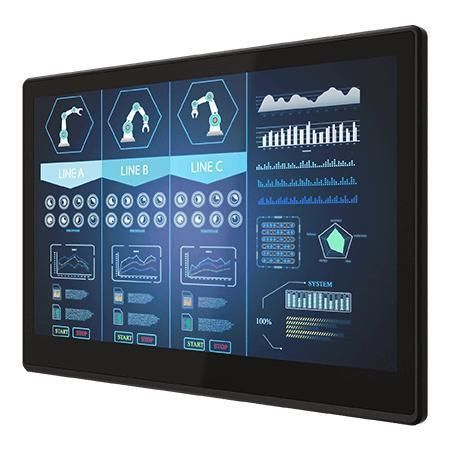

LCD monitor W14L100-EHA1

multitouch screenprojected capacitive touchscreenindustrial

Overview
The Winmate W14L100-EHA1 is a 14-inch panel-mount multi-touch display engineered for industrial visualization, control rooms and equipment monitoring. It features Full HD (1920 x 1080) resolution, projected capacitive multi-touch (PCAP) and a high-brightness panel suitable for varied lighting conditions. Panel-mount installation is standard with optional VESA mounting for flexible integration into control enclosures and OEM systems.

Key features

• 14.0-inch 1920 x 1080 Full HD display
• Projected capacitive multi-touch (PCAP)
• High brightness: 700 nits
• VGA input (default) and HDMI input (optional)
• Panel mount (default) with optional VESA mount
• Front IP65 protection

Product highlights

• Designed for continuous 24/7 industrial operation with low power consumption
• Flexible mounting options for seamless panel integration or VESA installation
• Metal housing with ABS+PC components and fanless cooling for improved reliability
• Accurate color reproduction and Full HD resolution for monitoring and automation tasks
• Multiple I/O options and customization (brightness, glass treatment, customer logo, power options)

Certifications

• CE
• FCC

Accessories
Standard accessories: AC adapter (100–240V AC to 12V DC), power cord, external USB cable for touch control, external VGA cable, external HDMI cable, VESA screws. Optional accessory: external DVI cable.

Technical specifications

• Model: W14L100-EHA1
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 700 nits
• Contrast Ratio: 1200:1
• View Angles: 89°/89°/89°/89°
• Display Color: 16.7M colors
• Active Area: 309.312 x 173.988 mm
• Dimension: 340 x 220 x 62 mm
• Cut out: 318.6 x 198.6 mm
• Weight: 4.1 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing & ABS+PC
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• USB Port: 1x USB Type-A for touch control (optional)
• Video: 1x VGA input (default); 1x HDMI input (optional)
• Indicator: 1x LED for power; 1x LED for status
• Power Input: 1x 12V DC, 2.5φ DC jack
• Power Rating: 12V DC
• Adapter: 12V 50W
• Buttons / Controls: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
