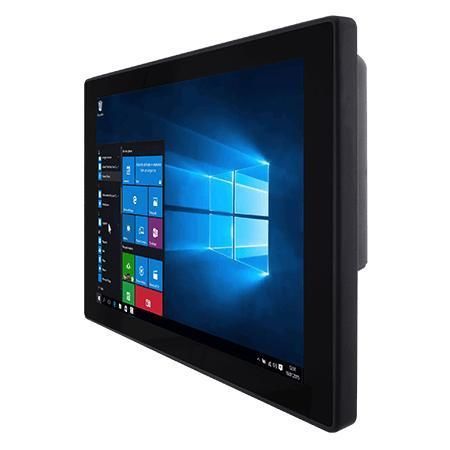

Multitouch screen panel PC R12IT3S-GCM2(HB)

PCAP capacitive touch screen12.1"1024 x 768

Overview
The Winmate R12IT3S-GCM2(HB) is a 12.1" standalone Panel PC HMI engineered for machine control, factory automation and operator interfaces. It integrates an Intel® Core™ i5-1135G7 processor (default) with a fanless thermal design, a projected capacitive (P-CAP) multi-touch display, front IP65 protection and a true-flat edge-to-edge front for straightforward cleaning. The unit provides multiple I/O and configurable storage/memory options for industrial integration.

Key features

• 12.1" TFT XGA (1024 x 768) with P-CAP multi-touch
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) (default); optional i5-1145G7
• Fanless cooling and low power consumption
• Front protection: IP65 (dust and splash)
• True-flat, edge-to-edge front surface for easy cleaning
• Multiple I/O: 2 x LAN (RJ45), 2 x USB 3.0, serial COM (RS232/422/485), optional HDMI, audio (speakers)

Certifications

• CE
• FCC

Product description / Highlights
Winmate R12IT3S-GCM2(HB) targets industrial buyers, OEMs and system integrators requiring long lifecycle availability and industrial-grade integration. The platform supports modular memory and storage (M.2 SATA/NVMe, optional SATA III), TPM 2.0 security, and multiple operating system options (Windows 11 IoT Enterprise SAC, Windows 10 IoT Enterprise, Linux Ubuntu 22.04). Mechanical options include VESA and panel mounting to fit factory and machine environments.

Technical specifications

• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Size: 12.1 inches
• Display — Resolution: 1024 x 768 (XGA)
• Display — Brightness: 500 nits (default); 1000 nits (optional)
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 89 / 89 / 89 / 89
• Display — Active Area: 245.76 x 184.32 mm
• System — Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz) (default); Intel Core i5-1145G7 optional
• System — Memory: 4GB (default); optional 8GB, 16GB, 32GB (SO-DIMM DDR4 3200 MHz, max 32GB)
• System — Storage: 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD; default 128GB; options 256GB–4TB NVMe; 1 x SATA III up to 2TB (optional)
• System — Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• System — Security: TPM 2.0
• System — OS (optional): Windows 11 IoT Enterprise SAC (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -20°C to 60°C
• Environment — Shock: MIL-STD-810G Method 516.6 Procedure I
• Environment — Vibration: MIL-STD-810G Method 514.6 Procedure I
• Environment — IP rating: Front IP65
• IO Ports — USB: 2 x USB 3.0
• IO Ports — Serial Port: 1 x RS232/422/485 (default RS232); optional 1 x RS232
• IO Ports — LAN: 2 x RJ45
• IO Ports — Video: 1 x HDMI (optional)
• IO Ports — Audio: 2 x Speaker
• Mechanical — Dimension: 296.2 x 226.7 x 47.5 mm
• Mechanical — Mounting: VESA mount; Panel mount
• Mechanical — Enclosure: Metal
• Mechanical — Cooling System: Fanless design
• Power — Power Rating: 12V DC input (default); 9~36V DC input (optional)
• Accessory — Quick Start Guide (Hardcopy), AC Adapter, Power Cable
• Control — Buttons: 1 x Power Button; 1 x Reset Button
