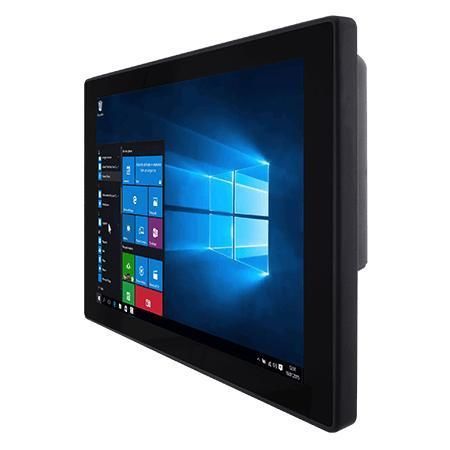

Multitouch screen panel PC R12IAD3S-GCM2(HB)

PCAP capacitive touch screen12.1"1024 x 768

Overview
Winmate R12IAD3S-GCM2(HB) is a 12.1-inch standalone Panel PC HMI for machine control, factory automation and operator interfaces. It integrates a 12th Gen Intel® Core™ i5-1235U processor, fanless thermal design and front IP65 protection for reliable operation in industrial environments.

Key Features

• 12.1” 1024 x 768 display with projected capacitive (P-Cap) multi-touch
• Intel® Core™ i5-1235U (12th Gen)
• Fanless cooling with heat sinks and vapor chambers; ultra-low power consumption
• Front protection IP65 against water and dust
• True flat, edge-to-edge front panel for easy cleaning
• Rich I/O: 2 x 2.5 Giga LAN, serial COM, 2 x USB 3.2 Gen2x1

Certifications

• CE
• FCC

Product Highlights
Projected capacitive multi-touch with a glass cover lens supports multiple touch points for smooth operator interaction. Fanless thermal architecture using heatsinks and vapor chambers enables silent, maintenance-free operation in industrial settings. Front IP65 rating plus a true-flat design prevents ingress and simplifies cleaning for hygiene-sensitive or harsh environments.

Technical Specifications

• Model: R12IAD3S-GCM2(HB)
• Brand: Winmate
• Display: 12.1" P-Cap, 1024 x 768
• Panel Brightness: 500 nits (default); 1000 nits (optional)
• Contrast Ratio: 1000:1
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8 GB (default); 16 GB, 32 GB (options)
• Storage: 128 GB SSD (default); options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit / Windows 11 Pro 64-bit / Ubuntu 22.04 (optional; Ubuntu does not support Wake on Touch)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); optional 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Dimensions: 296.2 x 226.7 x 47.5 mm
• Mounting: VESA mount; Panel mount
• Enclosure: Metal
• Cooling: Fanless design (heatsink / vapor chamber)
• Power: 12 V DC input (default); 9~36 V DC input (optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock/Vibration: MIL-STD-810G Method 516.6 / 514.6
• Front IP Rating: IP65
• Accessories: Quick Start Guide (hardcopy), AC adapter, power cable
